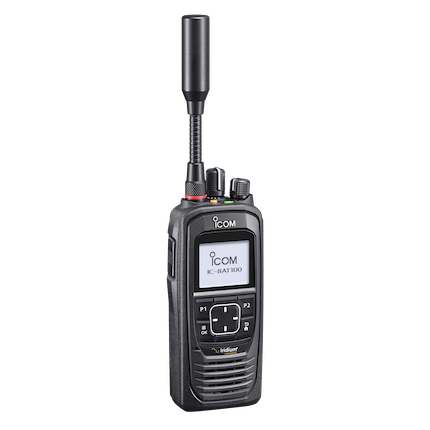

ICOM IC-Sat100 PTT

$1,200.00

One-to-many global communications with just a push of a button.

SATELLITE PTT (Push-To-Talk) is a two-way radio system that uses the Iridium® satellite network. It can be used as a communication tool in remote, isolated areas where there are no mobile phones or landline network infrastructure. Even if terrestrial network infrastructure is rendered unusable by human or natural disasters, satellite PTT can provide a stable back-up, independent from other networks.

Iridium PTT Service Plans

Key Features

  • Communicate with anyone in your Talkgroup anywhere on the planet by pressing the PTT button

  • Unlimited PTT Usage – No per minute cost for any amount of usage

  • Command Center Portal - Control all aspects of your PTT phones from one intuitive interface

  • PTT display will show name, direction and distance of speaker. Such as "John Smith, 38 mi NW"

  • Create more than one Talkgroup per handset. Communicate with different teams

  • Unlimited number of PTT phones supported in any Talkgroup

  • Interagency - Include PTT phones from other organizations for a shared PTT talkgroup

  • Interoperability with Conventional Radios

  • Docking stations available. Corded or cordless "lapel" mics make PTT use familiar

  • Handsets may switch to "Phone mode" to make and receive satellite calls from anyone

  • Real-Time, Low-Latency Communication

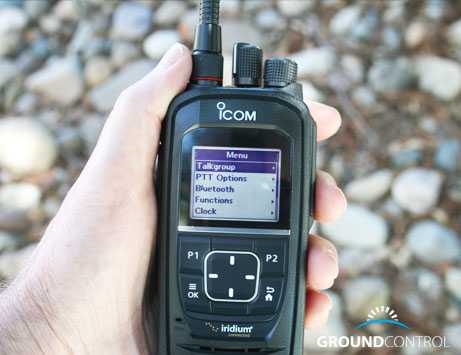

  • Water, shock and dust proof for extreme environments. MIL-STD 810G IP67 Ingress rating.

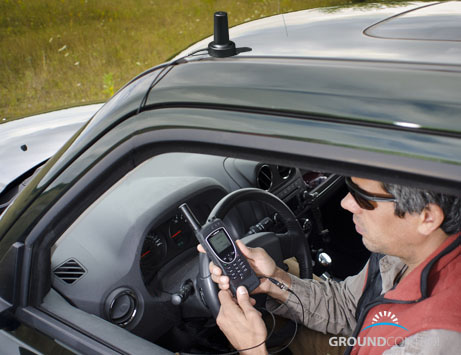

  • Includes vehicle Mag-Mount antenna. Can be used for indoors external antenna as well

  • Long Lasting Battery Life: ICOM IC-SAT100 has 5 hour talk time and 90 hour stand-by time

  • Short Data Message and Voice Recording function

  • Multiple language display (English, Chinese, French, Japanese, and Spanish)

  • USB charging (USB Micro-B type)

Technical Specification

  • Dimensions: 57.8 × 135 × 32.8 mm, 2.3 × 5.3 × 1.3 in

  • Weight: 360g, 12.7 oz (with BP-300 and antenna)

  • Operating Temperature: –30°C to +60°C, –22 °F to 140 °F

  • Battery Life: 14.5 hours (TX : RX : standby = 5 : 5 : 90)

  • Talk Group: 15 groups (Maximum)

  • AC Power: 100 - 240 VAC, 50-60Hz; (comes with international AC adapter kit (US, EU, UK, AU)

  • DC Power (vehicle adapter): Input 7.5 volt DC nominal

  • Battery: Li-Ion rechargeable 3.7 volt 3760 mAh, 13.91 watt

  • Ruggedness: Military-Grade MIL-STD 810G - Ingress of IP67 (underwater)

  • Encryption Security: AES 256

Documentation
