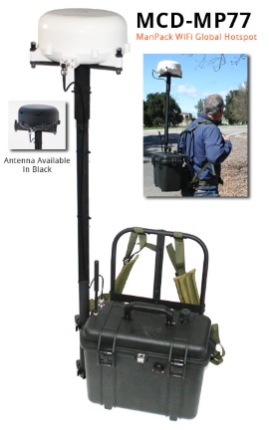

MCD-MP77 Manpack BGAN Terminal

$16,308.99

Auto-pointing - Simply turn it on - The MCD-MP77 is a hikeable Wi-Fi access point for everywhere on the globe.

Key Features

  • Walkable satellite internet connectivity for anyone - globally.

  • Comfortable Alice-style ruggezied aluminum pack.

  • Wi-Fi hotspot for all in-range devices up to 100 meters (328 feet).

  • Broadband speeds of 464Kbps (94.5% as fast as the fastest BGAN).

  • May be operated by anyone. Online in about one minute.

  • Operates stationary or in-motion, on land or any open sky.

  • Weighs 30lbs (13.6kg) and runs up to six hours on internal battery.

  • Optional 80-watt foldable solar panel for off-grid power-recharging.

  • All-weather operation from -25°C to +70°C (-13°F to 158°F).

  • Sturdy aluminum frame construction - built to take a beating.

  • Quick-disconnects for mast and cables for easy transportation.

  • External Ethernet port (and optional external phone port).

  • Internet, phone, SMS messaging - an on-the-trail office.

Technical Specifications

  • The MCD-MP77 integrates with the Hughes 9450 BGAN terminal enclosed in a hardened Pelican case.

  • System components include an AC/DC power-supply / charger with international plug adapters (US, UK, AU, EU, China, N. Europe), cradled analog phone, and a small ruggedized bag to hold all components.

  • Terminal Capability - Internet (an open TCP-IP network to the internet backbone), email, phone, fax, SMS, VoIP, FTP, video streaming, VPN, and private networking options available

  • Data / Internet Speeds - Rated up to 464Kbps down x 448Kbps up with a standard IP data connection. Class 2 BGAN.

  • Antenna Type - Class 11.

  • Global Service - Inmarsat BGAN I4 network - Operates with any BGAN service provider. Ground Control standard BGAN service and BGAN M2M service.

  • BGAN Rx/Tx Frequencies - L-band, Rx @ 1525.0-1559.0MHz, Tx @ 1626.5-1660.5MHz.

  • EIRP - 15.1dBW.

  • Network - DHCP, NAT, public/static IPs available.

  • Firewall - At teleport - Whitelist and blacklist supported free

  • MCD-MP77 Manpack Wireless LAN - 802.11b/g/n - Up to 100 meters WiFi range.

  • Wi-Fi Connected Devices - Up to 11 wireless devices may connect to the MCD-MP77 simultaneously.

  • MCD-MP77 Wireless Security - WPA2 security, MAC filtering options for up to 10 devices.

  • MCD-MP77 External Port - LAN - One RJ45 Ethernet with PoE (power over Ethernet).

  • External Ports - Voice - Optional RJ11 - Circuit switched (4kbps 3.1 Khz audio) - Please request at purchase. Issued international phone number (Inmarsat satellite phone 870 country code).

  • Recharging - AC/DC power supply (with international plugs). System includes DC vehicle cable adapter to charge direct from vehicle power port. May use optional foldable solar panel to charge in no-power locations.

  • Streaming Services 1:1CIR - 32Kbps, 64Kbps, 128Kbps - Streaming information

  • Pack Dimensions - H/W/D 47" x 22" x 13.5" (1.19 x .56 x .34 meters). Mast height is variable with quick-clamps.

  • Weight MCD-MP77 Manpack Case - 30lbs (13.6kg).

  • Internal Battery Life - Up to six hours normal use.

  • Power Draw - The MCD-MP77 Manpack draws 32 watts of power at idle, 65 watts when transmitting.

  • Recharge Time - Less than four hours (from fully discharged) using 110 to 240VAC (worldwide).

  • Onboard Battery Type - Lithium ion - 170 watt hours - Not FAA transportable without authorization. (Limit is 100 watt hours.)

  • Regional Power Plug Compatibility - Includes international plug kit for US, UK, European, Australian, China, N. Europe

  • AC/DC Power Supply - Charger - Input 110 to 240 Volts AC.

  • DC Power - DC recharging cable from vehicle power port is provided.

  • Humidity - 95% RH at +40°C

  • Operating Temperatures - -13°F to 158°F (-25°C to +70 C).

  • Rain / Water / Dust - IP66 when closed (powerful water jets from any direction).

  • Wind - System is not affected by wind.

  • Ice - 20mm build-up before signal loss

  • Max Turning Rate (Azimuth) - 40° per second.

  • Turning Acceleration - 50°/s2.

  • Antenna Colors Available - White (default) and black.

  • Manufacturer Support - The MCD-MP77 Manpack is integrated satellite technology manufactured by Ground Control and supported by us 24/7.

  • Warranty - One-year standard warranty. Three-year and five-year extended warranties available.

  • Made In The USA - The Hughes 9450 and the MCD-MP77 pack are US manufactured.

  • Inmarsat Type Approval - The Hughes 9450 has been type-approved by Inmarsat.

  • Hughes 9450 Compliance - FCC ID: K3YHNS9450, CE: CE0470, Class 2 BGAN terminal, Declaration of Conformity.

  • MCD-MP77 Manpack Firmware - Latest firmware upgrade for the MCD-MP77 Manpack found here.

Overview

The MCD-MP77 Manpack places an in-motion BGAN terminal on a lightweight backpack frame for constant Wi-Fi access from any remote trail, wilderness or urban location on the globe. Like our popular MCD-4800 BGAN terminal the MCD-MP77 Manpack delivers one-button internet and phone with these features.

A Multi-Purpose Instant-Anywhere Broadband Internet and Phone
The MCD-MP77 Manpack mounts an In-Motion BGAN terminal on an Alice backpack frame for up to 100 meters to any in-range wireless device. Housed in a waterproof IP66 Pelican case, the BGAN transceiver and 170 watt-hour battery allow this Wi-Fi hotspot to maintain connectivity up to six hours in extreme weather. Combined with our 80-watt foldable solar panel and the MCD-MP77 may run indefinitely as long as there is sun to power and quickly charge the onboard battery.

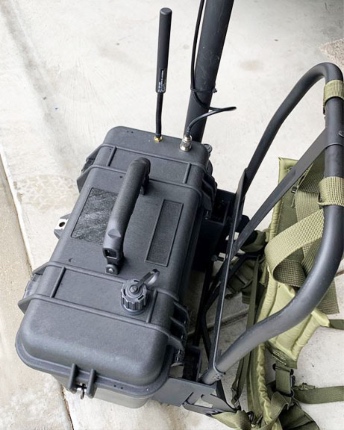

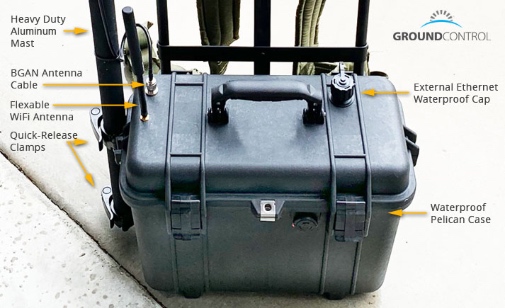

The MCD-MP77 Manpack Case Top

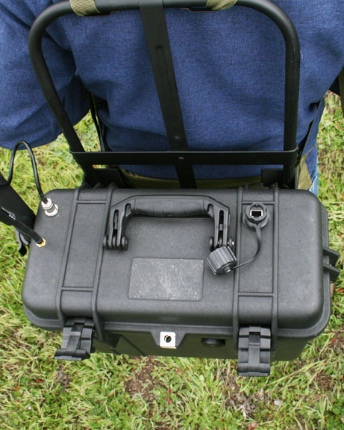

While the MCD-MP77 Manpack is primarily used as a wireless hotspot, the top of the case does include a a weather-sealed Ethernet port (and optional phone port to connect a standard phone). All cabling and the mast-pole are easily removed for easy transportation of the individual components. Weatherproof caps are also included with the system.

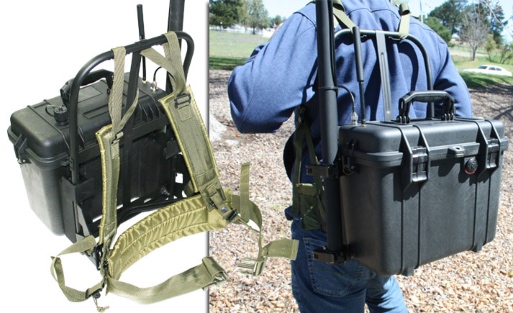

Comfortable belts on the Alice-style pack hold the 30lbs (13.6kg) pack comfortably.

Global Service for the MCD-MP77 Manpack

The service area of the MCD-MP77 is global except for extreme polar regions. If the system is located within any of the colored regions above, you may connect. The MCD-MP77 uses BGAN service plans available from Ground Control or other BGAN service provider for Internet, phone, SMS messaging and many other communication services. For more information on the BGAN service area, please visit the BGAN coverage map.

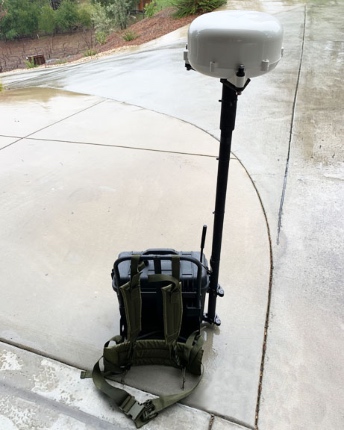

Built For Extreme Environments

The MCD-MP77 Manpack is enclosed in a watertight hardened plastic Pelican case and the case lid is normally closed for full operation. It operates in heavy rain and will transmit with 20mm of ice build-up before transmission issues. It is rated at IP66, which means it can withstand powerful water jets from any direction. In extremely hot environments, we recommend the case lid be slightly opened for ventilation, so as to avoid heat build-up inside the case.

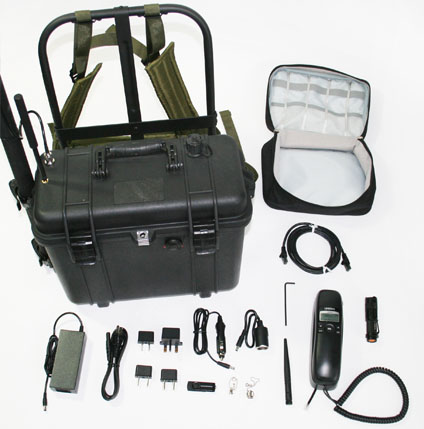

  • MCD-MP77 Manpack with 9450 BGAN Terminal
  • AC/DC power supply charger
  • International plugs US, UK, EU, AU, China
  • DC Vehicle Adapter for charging
  • DC Vehicle Plug Adapter for pulling power from MCD battery
  • USB flash drive for manuals
  • TNC and SMA waterproof caps (used for dissembly-transport)
  • Allen wrench for mast-antenna removal (not required)
  • Backup WiFi Antenna
  • A standard corded analog phone
  • Small flashlight
  • 6' foot Ethernet cable
  • Accessory bag to hold contents of system components
  • (The accessory bag is stored inside of Pelican case)
BGAN Standard+ Monthly Plan - 12 month minimum term Our most popular BGAN plan that reduces the cost per Megabyte down to under $0.10 cents if transferring Gigabytes of data in a month. This is the plan to get if you may need to transfer a lot of data some months, and not so much data (or nothing) in other months. Includes 20 Megabytes each month at no additional costStandard+ $63 a month Includes 20MB monthly 12 month minimum term Details of Standard+
Low-Cost High-Usage BGAN Plans - Standard+ These BGAN Internet plans have the same priority level as the popular IsatHub service. Where High-Priority plans below cost about $5.00 USD per Megabyte, Standard+ plan can offer a per Megabyte cost of below $0.15 cents. Service is for all BGAN terminals world wide. Available now! Standard+ BGAN Plans 1,000 MBs - $1,660 5,000 MBs - $2,625 Unlimited Use - $4,555 Standard+ Plans
100 Megabytes Prepaid SIM Plan - High Priority Routing - Valid 90 days 100 Megabytes at $525 = $5.25 per Megabyte - TopUp Megabytes Anytime. SIM card includes 100 Megabytes that may be used at any time during a 90 day period. Phone calls billed $0.99/min to any landline or cellphone worldwide, free incoming calls. SMS texting billed $0.50 per outgoing text, free incoming texts. SIM can be renewed with any plan at any time. SKU: BGANBW100QRT$525 USD Prepaid 100 MBs valid for 90 days High Priority Routing PayPal Payment Checkout Order By Phone or Email
200 Megabytes Prepaid SIM Plan - High Priority Routing - Valid 90 days 200 Megabytes at $995 = $4.97 per Megabyte - TopUp Megabytes Anytime. SIM card includes 200 Megabytes that may be used at any time during a 90 day period. Phone calls billed $0.99/min to any landline or cellphone worldwide, free incoming calls. SMS texting billed $0.50 per outgoing text, free incoming texts. SIM can be renewed with any plan at any time. SKU: BGANBW200QRT$995 USD 200 MBs valid for 90 days High Priority Routing PayPal Payment Checkout Order By Phone or Email
300 Megabytes Prepaid - High Priority Routing - Valid 1 year from activation 300 Megabytes at $1,467 = $4.89 per Megabyte - TopUp Megabytes Anytime. SIM card includes 300 Megabytes that may be used at any time during a 1 year period. Phone calls billed $0.99/min to any landline or cellphone worldwide, free incoming calls. SMS texting billed $0.50 per outgoing text, free incoming texts. SIM can be renewed with any plan at any time. SKU: BGANBW300ANN$1,467 USD 300 MBs valid for 365 days High Priority Routing PayPal Payment Checkout Order By Phone or Email
600 Megabytes Prepaid - High Priority Routing - Valid 1 year from activation 600 Megabytes at $2,820 = $4.70 per Megabyte - TopUp Megabytes Anytime. SIM card includes 600 Megabytes that may be used at any time during a 1 year period. Phone calls billed $0.99/min to any landline or cellphone worldwide, free incoming calls. SMS texting billed $0.50 per outgoing text, free incoming texts. SIM can be renewed with any plan at any time. SKU: BGANBW600ANN$2,820 USD 600 MBs valid for 365 days High Priority Routing PayPal Payment Checkout Order By Phone or Email
1,200 Megabytes Prepaid - High Priority Routing - - Valid 1 year from activation 1,200 Megabytes at $5,639 = $4.70 per Megabyte - TopUp Megabytes Anytime. SIM card includes 1,200 Megabytes that may be used at any time during a 1 year period. Phone calls billed $0.99/min to any landline or cellphone worldwide, free incoming calls. SMS texting billed $0.50 per outing text, free incoming texts. SIM can be renewed with any plan at any time. SKU: BGANBW1200ANN$5,639 USD 1,200 MBs valid for 365 days High Priority Routing PayPal Payment Checkout Order By Phone or Email
High-Use High-Priority BGAN SIM Cards/Plans - Valid 1 year 2 Gigabytes - $9,360 | 3 Gigabytes - $13,980 | 4 Gigabytes - $18,560 5 Gigabytes - $23,100 | 7 Gigabytes - $32,060 | 10 Gigabytes - $41,300 15 Gigabytes - $61,200 | 25 Gigabytes - $77,826 | & Higher | SKU:BGANBWHUHigh Priority Routing Please order by Email or Phone
Unlimited Internet Use Standard+ These Standard+ plans provide Unlimited Internet over any BGAN terminal globally for monthly, quarterly, bi-annual and annual calendar months (A calendar month is Jan, Feb, March) Plans end on the last day of valid period calendar month. Please note that Inmarsat does reserve the right to slow speeds up to 128 Kbps if over 30,000 Megabytes are used in a month. Phone calls are post use billed at $0.99/min to any landline or cellphone worldwide, free incoming calls. SMS texting billed $0.50 per outing text, free incoming texts. SKU: BGANBWLP30K, BGANBWLP3MO, BGANBWLP6MO, BGANBWLPMAXUnlimited Internet Use $4,555 1 Month $12,640 Quarterly $23,377 Bi-Annual $42,949 Annually
1 Gigabyte Standard+ Consumer Grade - 1 Month 1,000 Megabytes at $1,660 = $1.66 per Megabyte This plan provides 1,000 Megabytes of Internet service during the current calendar month (Jan, Feb, Mar, etc...). May purchase additional months for an extended usage period. Phone calls billed $0.99/min to any landline or cellphone worldwide, free incoming calls. SMS texting billed $0.50 per outing text, free incoming texts. SKU: BGANBWLP1K1,000 MBs Standard+ Current Month $1,660 USD Valid from the 1st of any month to the last day of the month.
5 Gigabytes Standard+ Consumer Grade - 1 Month 5,000 Megabytes at $2,652 = $0.53 per Megabyte... A great deal. This plan provides 5,000 Megabytes of Internet service during the current calendar month (Jan, Feb, Mar, etc...). May purchase additional months for an extended usage period. Phone calls billed $0.99/min to any landline or cellphone worldwide, free incoming calls. SMS texting billed $0.50 per outing text, free incoming texts. SKU: BGANBWLP1K5,000 MBs Standard+ Current Month $2,652 USD Valid from the 1st of any month to the last day of the month.
Usage Only BGAN Service - High Priority Routing - 1 year term A usage-only Internet service - Pay for only what you use each month at $6.99 per Megabyte transferred. Like our other BGAN plans, phone calls are billed $0.99/min to any landline or cellphone worldwide, free incoming calls. SMS texting billed $0.60 per outgoing text, free incoming texts. Requires credit card for monthly subscription and usage fees. SKU: BGANBWUSAGE$74 USD/month 1 Year Term High Priority Routing PayPal Payment Checkout Order By Phone or Email
Emergency Responder - Public Safety BGAN Service Unlimited Use Affordable usage-based BGAN service specifically designed for public safety organizations. Internet usage is billed monthly at these rates: $4 per MB for the first 100 MBs transferred. $3 per MB for the next 400 MBs transferred. $2 per MB for the next 500 MBs transferred. $1 per MB for the next 3,000 MBs transferred (3 Gigabytes or GB). $0.10 cents per MB for over 4 Gigabytes for Unlimited Use ($100 per GB)$60/month + Usage 12 month minimum term ($650 USD if paid annually)
Covid-19 Special For All Aid and NGO Workers Globally Unlimited Use Internet For 90 Days For $4,000 USD Ground Control is offering all Aid workers from any location on the globe a special unlimited use BGAN Internet package valid for 90 days for a one time cost of $4,000 USD. Please email us at [email protected] for details on this exceptional offering.Unlimited Use Internet for 90 days - $4000 USD Please email for details
