ICOM IC-Sat100 PTT

Tech Specification

• Dimensions: 57.8 × 135 × 32.8 mm, 2.3 × 5.3 × 1.3 in
• Weight: 360g, 12.7 oz (with BP-300 and antenna)
• Operating Temperature: –30°C to +60°C, –22 °F to 140 °F
• Battery Life: 14.5 hours (TX : RX : standby = 5 : 5 : 90)
• Talk Group: 15 groups (Maximum)
• AC Power: 100 – 240 VAC, 50-60Hz; (comes with international AC adapter kit (US, EU, UK, AU)
• DC Power (vehicle adapter): Input 7.5 volt DC nominal
• Battery: Li-Ion rechargeable 3.7 volt 3760 mAh, 13.91 watt
• Ruggedness: Military-Grade MIL-STD 810G – Ingress of IP67 (underwater)
• Encryption Security: AES 256

What Is Satellite PTT?

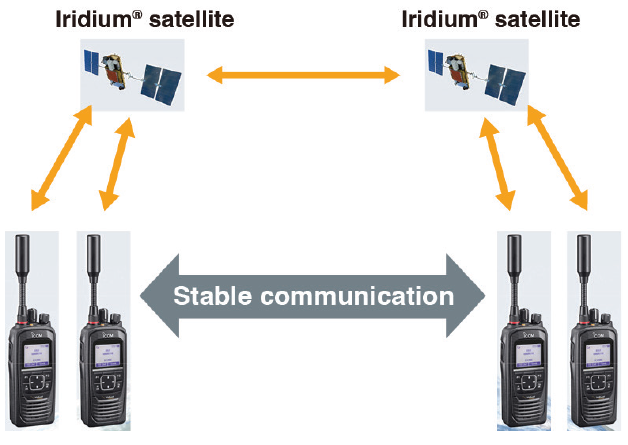

SATELLITE PTT (Push-To-Talk) is a two-way radio system that uses the Iridium® satellite network. It can be used as a communication tool in remote, isolated areas where there are no mobile phones or landline network infrastructure. Even if terrestrial network infrastructure is rendered unusable by human or natural disasters, satellite PTT can provide a stable backup, independent from other networks.

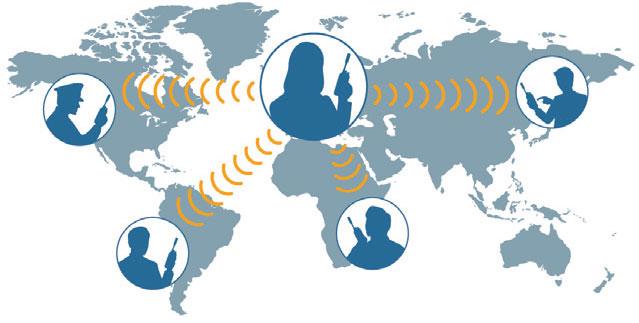

One-to-Many Communications

Unlike satellite phones, IC-SAT100 users can immediately start talking to all the radios in the same talkgroup, with just a push of the transmit (PTT) button.

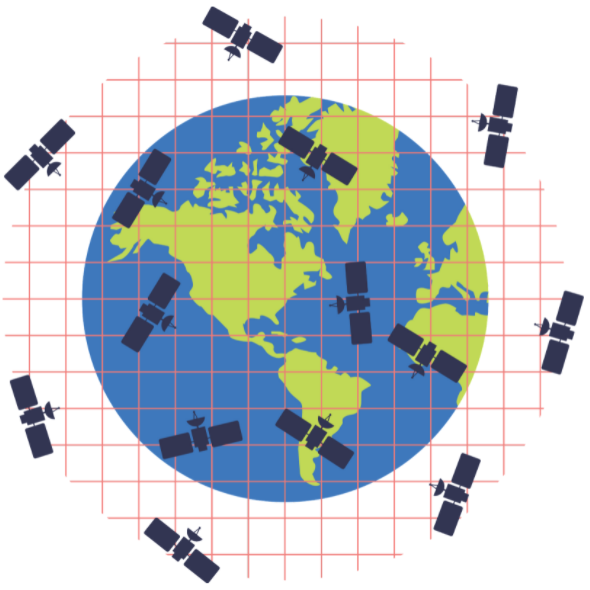

Wide Area Global Communications

The Iridium® satellite network covers the entire earth, including both poles, and can provide wide area global communications anywhere on the planet (depending on the country or region, carrying and/or use of the IC-SAT100 may be prohibited).

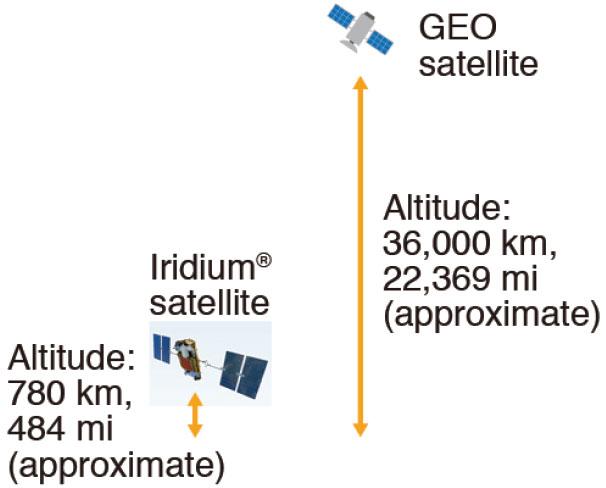

Real-Time, Low-Latency Communication

Using 66 Low Earth Orbit (LEO) Iridium® satellites, the IC-SAT100 provides low-latency communication, and broader, more reliable network coverage, compared to Geosynchronous Equatorial Orbit (GEO) satellites.

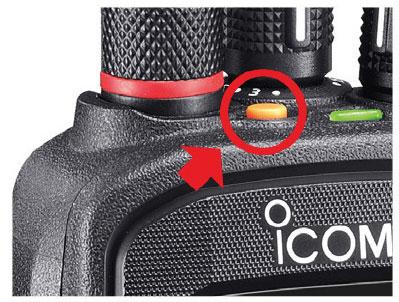

Built-in Emergency Key

The orange key on the top panel can be used for emergency situations. You can transmit an emergency call to pre-programmed users with holding down the key.
