ICOM IC-Sat100M PTT

One-to-Many Satellite Communication for In-Building and In-Vehicle Use

The Icom IC-SAT100M is the dedicated satellite push-to-talk (PTT) radio, and is the only PTT radio offering real-time communications at the push of a button between a group of individuals, each of whom can be anywhere on the planet*. The IC-SAT100M uses the Iridium® satellite communication network, which covers the entire globe, including both poles.

Iridium PTT Service Plans

Key Features

  • 100% global coverage on the Iridium network, provided by Ground Control
  • One-to-Many Communications
  • Real-Time, Low-Latency Communication
  • Interoperability with Conventional Radios
  • In-Vehicle or In-Building Use
  • Voice Recording function
  • Built-in Bluetooth capability
  • Multiple language display ( English, Chinese, French, Japanese, and Spanish)
  • Integrated GPS receiver shows received signal position
  • Short Data Message
  • AES 256-bit encryption for security
  • Tested to the MIL-STD-810 environmental tests

Tech Specification

  • Dimensions (Main Unit): 125 × 29 × 156.5 mm, 4.9 ×1.1 × 6.2 in
  • Dimensions (Antenna Unit): 76.8 × 200 × 76.8 mm, 3 ×7.9 × 3 in
  • Dimensions (Handset): 59.5 × 134.6 × 30.1 mm, 2.3 × 5.3 × 1.2 in
  • Weight (Main Unit): 1,200 g, 2.6 lb
  • Weight (Antenna): 500 g, 1.1 lb
  • Operating Temperature: –30°C to +60°C, –22 °F to 140 °F
  • Power: 13.2 V / 26.4 V DC (10.5–32 V DC)
  • Talk Group: 15 groups (Maximum)
  • IP Rating: IP67 (antenna with RF unit), IP55 (mic), IP54 (main unit)
  • Connector for External Antenna: SMA

Overview

IC-SAT100/M users can immediately start talking to all the radios in the same talkgroup, with just a push of the transmit (PTT) button.

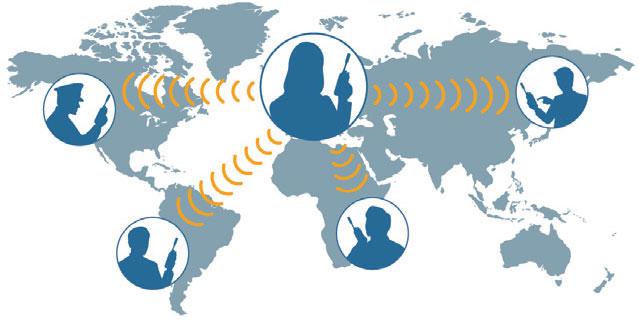

ne to many PTT illustration

Total Global Coverage, Including the Poles



The Iridium® satellite network covers the entire globe, including both poles, and can provide global communications anywhere on the planet (note, however, that depending on the country or region, carrying and/or use of the IC-SAT100/M may be prohibited).

Iridium Satellite Map

Real-Time Communication



Using 66 Low Earth Orbit (LEO) Iridium® satellites, the IC-SAT100/M provides low-latency communication, and broader, more reliable network coverage, compared to Geosynchronous Equatorial Orbit (GEO) satellites.

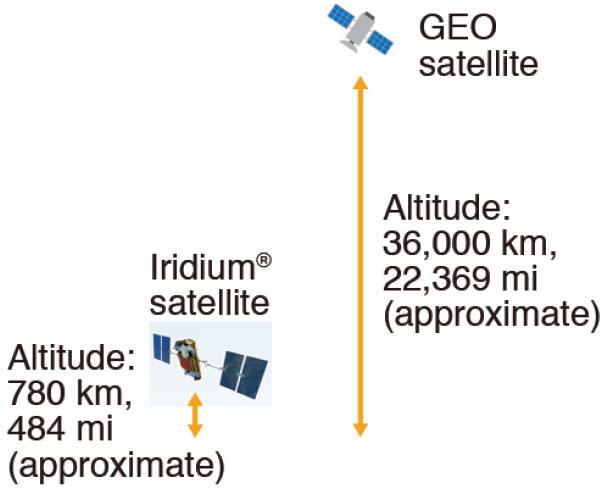

Difference-in-orbit-heights-ICOM

Interoperability with Conventional Radios



With a VE-PG4 RoIP gateway, the IC-SAT100/M can interconnect with an IP phone, WLAN, LTE, IDAS digital (Type-D multi-site trunking and conventional systems), analogue transceivers and other communication systems.

Contents

ICOM IC-Sat100M PTT Complete Package from Ground Control Includes:

  • IC-Sat100M PTT Transceiver (powered by DC power source… includes DC power cable with 5 Amp fuse).
  • Handset Speaker/Microphone with 15 position Talkgroup knob.
  • Antenna Unit connected by Ethernet cable to the indoor transceiver.
  • 20 meter included Ethernet cable with waterproof outdoor connector to the antenna
  • Assorted mounting brackets and hardware for roof-top pole/wall mounting.
  • Assorted mounting brackets and hardware for indoor transceiver and speaker/mic.

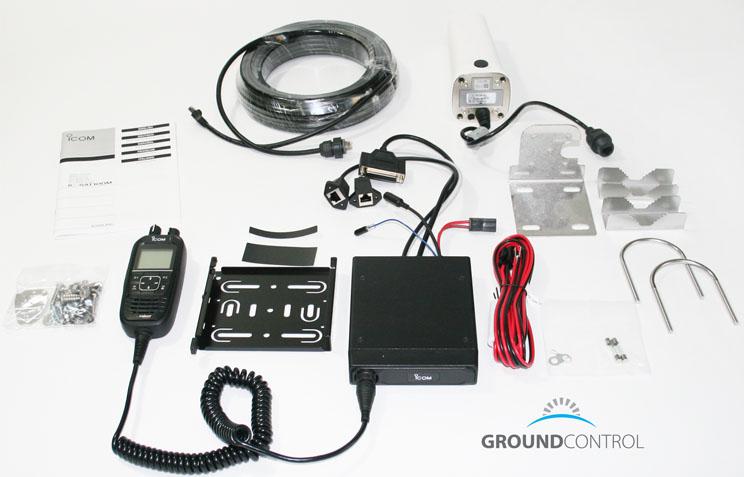

Contents of the ICOM_IC-SAT100M
