Toughsat TS2 Controller

Satellite Antenna Control Unit

A key ingredient of the Ground Control Toughsat solution, the Toughsat TS2 is our next generation of mobile satellite controller with a host of new features including Dual Matrix, a dual-satellite infrastructure with one-button switching between satellites.

The Toughsat TS2 removes the complexity of satellite connectivity so any operator can establish broadband Internet and phone from any location with a touch of a button.

Contact one of our solution experts to discuss how we can solve your communications needs.

iDirect Service Plans

Key Features

  • One-Button ‘Deploy’ and one-button ‘Stow’ commands. Requires little or no training to operate.
  • Dual Matrix Sat 1 and Sat 2 buttons enable powerful redundant technologies for maintain100% uptime.
  • Backlit display on 1RU ACU panel for real-time system status.
  • A 1RU ACU 19″w x 12″d x 1.75″h x with integrated full feature Wi-Fi router and 4-port LAN. (1epth includes wires).
  • Integrated full-feature 4-port router to network up to 256 connected devices.
  • Wireless 802.11 ‘G’ access point rated at 54Mbps, with 4-port full-duplex 10/100 Ethernet switch.
  • Automatically establishes a 100-foot wireless access point and wiring to computers is optional.
  • Integrated high capacity microSD card for user manuals and other documents.
  • Integrated DVB-S2 tuner reduces acquisition time and provides for satellite modem independence.
  • Designed for communication with all iDirect iNFINITI, Evolution, and Tachyon routers.
  • Wireless Security TKIP (WPA) and AES (WPA2) security with 128-bit encryption.
  • SPI Firewall, VPN passthrough, MAC address filtering, NAT, DMZ, port forwarding, port triggers.
  • DHCP Server, DHCP Client, QOS, Tos/DiffSerf, UPnP, MAC Address clone, RIP v1, RIP v2.
  • No internal fan – ACU operates silent. (The iDirect Evolution X5 router operates silent as well).
  • Multiple auto-stow routines, loss of signal, vehicle movement, power loss (with UPS option). more
  • Custom TS2 panel and web interface branding available for qualified resellers.
  • Compatible with all Toughsat mobile systems.

Overview

Onboard Router – Wi-Fi Hotspot

All TS2 controllers have integrated wireless routers to create a wired or wireless LAN. Smartphone and tables can make and receive texts and with a 100-foot connectivity radius, wiring to equipment is optional. High security includes SPI firewall, MAC address filtering, WPA, and WPA2 security with 128bit encryption. Operation is transparent. Once the ‘Deploy’ button on the TS2 is pressed, the Wi-Fi hotspot will self-enable. No other operation is needed, except pressing the ‘Stow’ button when you’re ready to move.

Dual-Satellite

Be it a line-of-site obstacle from a building or tree, congestion, a network error, or even the satellite going offline, Ground Control’s Dual Matrix service offers connectivity with a second orbiting satellite at the touch of a button.

This fully redundant, dual-infrastructure solution is ideal for all industries that must maintain the highest of communications standards. Use of Dual Matrix requires the TS2 controller with any Toughsat mobile satellite system. Simply press ‘Sat 1’ or the ‘Sat 2’ button to switch between satellites.

The Toughsat dish will automatically search and connect in about one minute with the second satellite without any other user interaction. Existing Toughsat customers may easily upgrade to the TS2 Dual Matrix controller. Please call for special upgrade pricing.

Powerful Diagnostics and Auto Firmware Updating



  • Free lifetime firmware upgrades with one-button simplicity.
  • ACU automatically checks for firmware updates when connected to the internet.
  • System provides accurate technical diagnostics without dispatching a technician to remote site.
  • Generates detailed running history log files that are kept on SD card and used for diagnostics.

TS2 Web Accessible Interface

  • ACU may be accessed by any connected computer/smartphone with browser. No software to install.
  • Detailed intuitive screens allow for preference settings and powerful overrides of many system parameters.
  • Controls to locate any visible satellite using satellite longitude only.
  • Override GPS with any Lat/Long.
  • One-button upgrading, with optional auto-update.
  • System Status – dish location, GPS coordinates, signal strength and connectivity state.
  • Full control over integrated router via interface screens.

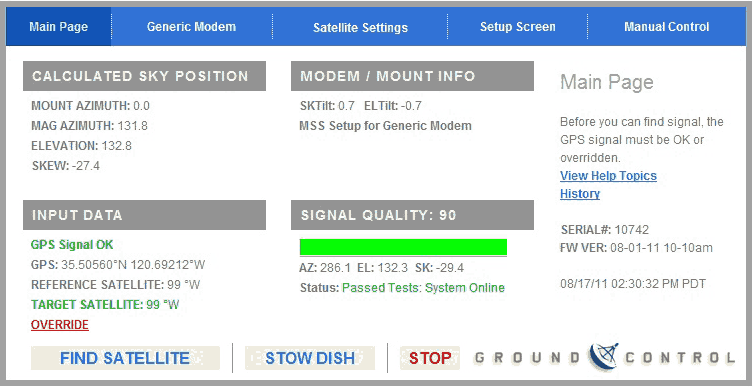

TS2 Main Interface Screen
Main Interface Screen
TS2 Dual Matrix screen
Dual Matrix screen
TS2 controller web interface
Manual Control Screen
controller_webinterface_946
Custom Satellite Configuration Screen

Documentation

download.svgToughsat TS2 Controller Specifications
