MCD-4800 – “The Football”

$12,995.00

Global, Portable, BGAN Internet Hotspot for Land and Sea

The MCD-4800 is a portable, easy to operate, auto-pointing BGAN satellite terminal which provides a powerful Wi-Fi hotspot in any environment.

No pointing, no setup, just place the weather proof case on the ground, boat deck or any surface with a clear view of the sky, then simply turn it on and close the lid.

BGAN Service Plans

Key Features

  • Easy to set up and use. Online within one minute

  • Global satellite internet connectivity (except polar) on the Inmarsat BGAN network

  • Connects automatically with any BGAN satellites for near 100% global service

  • Broadband speeds of up-to 464Kbps

  • Wi-Fi hotspot up to 100 meters (328 feet)

  • Internet, email, voice and SMS messaging services

  • Housed in a portable, ruggedized, waterproof case, which does not need to be opened for operation

  • Operates stationary or in-motion, on land, or open ocean

  • Up to 5 hour battery life for normal use

  • Does not require user interaction. No software to run. Establishes AP "Hotspot" automatically

  • Ethernet RJ-45 port on the front panel is also PoE (Power over Ethernet) capable

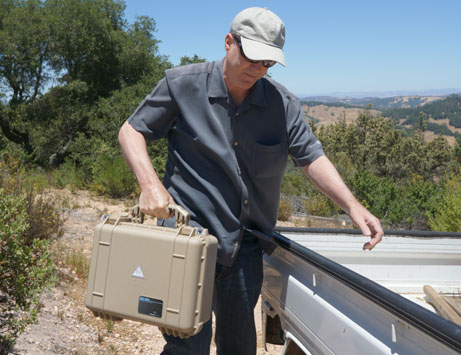

  • Compact size 17" x 13.75" x 6.75" (432 x 349 x 171 mm) and weighs 25 lbs (10.9 kg)

  • Internet service can be usage based, or pre-paid using standard BGAN Service Plans

  • Includes standard analog phone. The RJ-11 jack is assigned an international phone number

  • No rain fade - Operates in heavy rain and will function with up to 20mm of ice build up

  • Internal temperature control fan - cools internal electronics during high temperatures

  • Shippable - Ships UPS, FedEx, flight carry-on luggage anywhere (no special battery regulations)

  • The MCD-4800 is a Ground Control integrated manufactured solution, supported by us 24/7

Technical Specifications

  • Terminal: Hughes 9450TW BGAN terminal

  • Terminal Capability: Internet, email, phone, fax, SMS, VoIP, FTP, Video Streaming, VPN, private networking options available

  • Data / Internet Speeds (Standard IP): Up to 464Kbps (Rx) x 448Kbps (Tx). Class-2 BGAN

  • Streaming Services: 32Kbps, 64Kbps, 128Kbps

  • Antenna Type - Class 11

  • Global Service with Inmarsat BGAN and BGAN M2M service provided by Ground Control

  • BGAN Rx/Tx Frequencies: L-band, Rx @ 1525.0-1559.0MHz, Tx @ 1626.5-1660.5MHz

  • EIRP: 15.1dBW

  • Network: DHCP, NAT, public-static IPs available

  • Firewall: At teleport - Whitelist and blacklist supported free

  • Wireless LAN: 802.11b/g/n, up to 100 meters range, up to 11 concurrent wireless connections

  • Wireless Security: WPA2 security, MAC filtering options for up to 10 devices

  • External Ports: 1 x RJ45 LAN / PoE, 1 x RJ11 Phone, 1 x AC/DC external power, optional 3 x RJ11 for Fax group support

  • Case Dimensions (LxWxH): 17" x 13.75" x 6.75 " (432 x 349 x 171 mm)

  • Weight: 25lbs 4.3 oz (11.46kg)

  • Battery Life: Up to five hours normal use

  • Power Draw: 32 watts of power at idle, and 65 watts when transmitting.

  • Recharge Time: Less than four hours (from fully discharged) using 110 to 240VAC (worldwide)

  • Battery Type: NiMH (nickel-metal hydride)

  • Regional Power Plug Compatibility: Includes international plug kit for US, UK, European, Australian, China, N. Europe

  • AC/DC Power Supply: Input 110 to 240 volts AC. Output 28 volts DC @ 8 Amps. Cable length 12' (3.6 meters)

  • DC Power: 400-watt 12-volt vehicle mini-inverter included. Cable length 3.7' (1.12 meters).

  • Operating Temperatures: -25°C to +70°C (-13°F to 158°F)

  • Humidity: 95% RH at +40°C

  • Rain / Water / Dust: IP67 when closed (immersion in up to one meter of water)

  • Wind: Unaffected by wind if case is secure

  • Ice: 20mm buildup before signal loss

  • Max Turning Rate (Azimuth): 40° per second

  • Turning Acceleration: 50°/s2

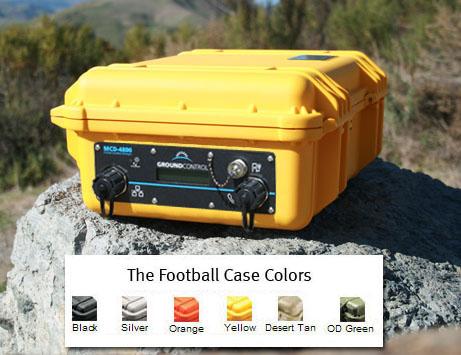

  • Case Colors Available: Desert tan (default color), yellow, black, silver, orange, OD green

  • Warranty: 12 month standard warranty. Extended warranties available

  • Hughes 9450TW Compliance: FCC ID: K3YHNS9450, CE: CE0470, Inmarsat certified Class-2 BGAN terminal

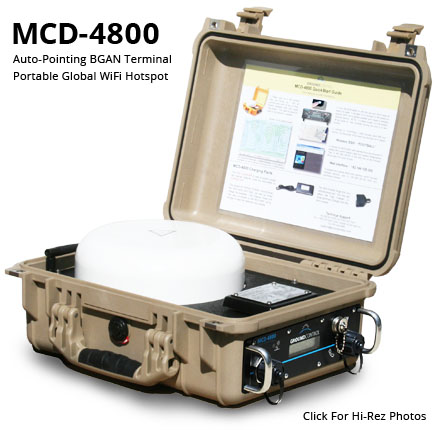

MCD-4800 Overview

The MCD-4800 “Mobile Communications Device”, also known as “The Football”, is an auto-pointing BGAN satellite terminal that requires no user training to operate. Simply place the weatherproof case on the ground or on a boat deck… or on any surface with a clear view of the sky, rain-or-shine, anywhere in the world and turn it on and then close the lid – no pointing necessary.

Within a minute the MCD-4800 becomes a powerful WiFi hotspot accessible by any wireless device within a 100 meter range for up to 5 hours on internal battery power. This auto-pointing solution uses the high performance Hughes 9450TW in-motion BGAN terminal integrated with our proprietary mobile electronics for a ruggedized self-contained, in-field or on sea, user-friendly global communications link.

Supports Other Communication Channels

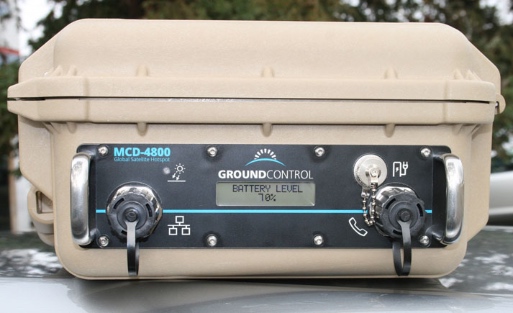

While the MCD-4800 is primarily used as a wireless hotspot, the front panel includes a weather sealed Ethernet port and a phone port to connect a laptop or a standard analog phone. The charge port has a watertight seal for several external power sources such as a portable solar panel, external battery, or vehicle power adapter.

The display shows current system status and remaining battery power and a light sensor allows the display to be backlit at night (the backlight may be enabled/disabled). The MCD-4800 only has one button, the power button located inside of the case which makes is easily operated by anyone.

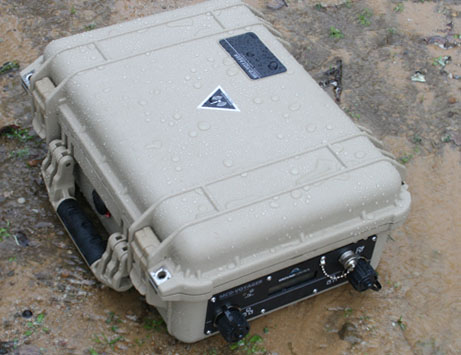

Built For Extreme Environments

The MCD-4800 is enclosed in a watertight hardened plastic Pelican case, and the case lid is normally closed for full operation. It operates in heavy rain and will transmit with 20mm of ice buildup before transmission issues. It is rated at IP67, which means it can withstand immersion in water up to 1 meter. In extremely hot environments, we recommend the case lid be slightly opened for venting for long duration use to avoid heat buildup inside the case.

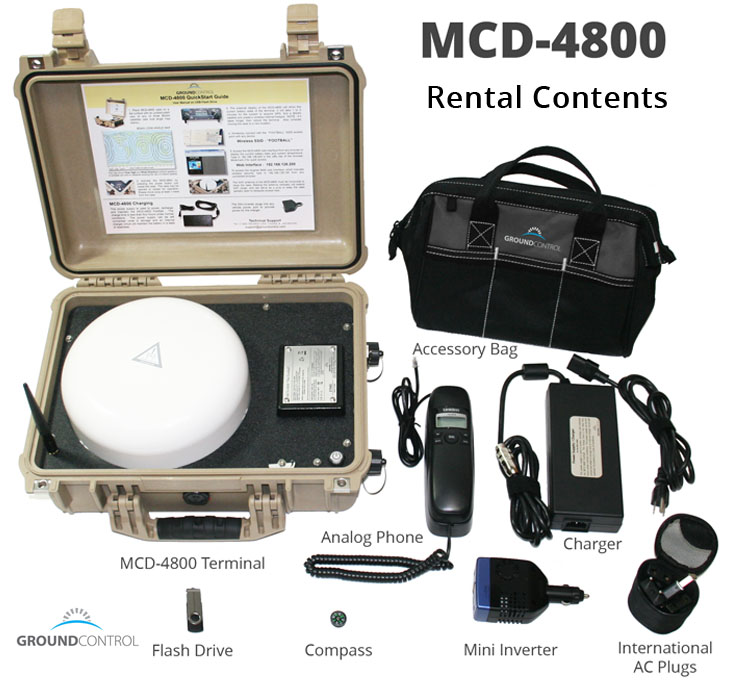

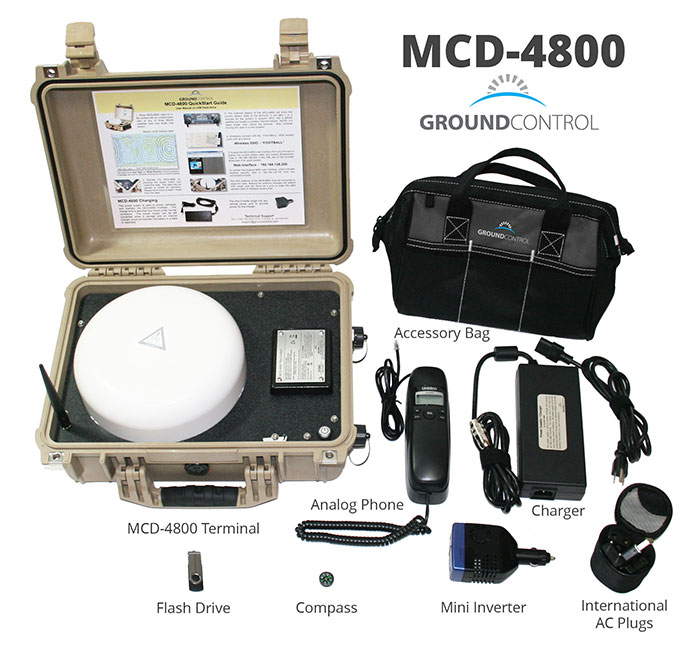

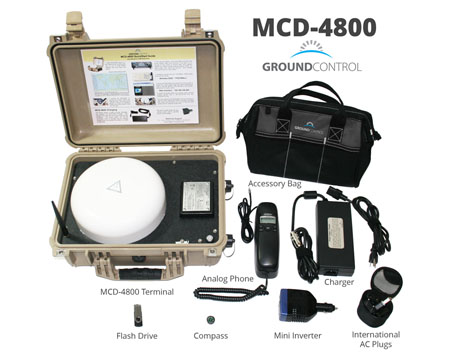

MCD-4800 Contents

The MCD-4800 integrates the Hughes 9450TW BGAN terminal into in a ruggedized Pelican 1450 case (flyaway case) with Ground Control engineered electronics and software.

System components include

  • AC/DC power-supply/charger with international plug adapters (US, UK, AU, EU, China, N. Europe)
  • 12V vehicle mini-inverter
  • Compass
  • Cradled analog phone
  • Laminated quickstart guide (affixed to case lid)
  • User manuals
  • Software
  • Small ruggedized bag to hold all components.

Documentation

The MCD-4800 in Action

MCD-4800
Ideal for Harsh Marine Environments

Since the MCD-4800 fully operates in closed hardened case, it is ideal for harsh marine environments. Here the MCD-4800 is being used for primary crew connectivity for the Oceana Canada during their Gulf of St. Lawrence Expedition.

MCD-4800
In-Motion BGAN Terminal

The MCD-4800 is an in-motion BGAN terminal, which makes it perfect for use on the water. The internal antenna's turning speed is rated at 40 degrees per second, which is faster than most vessels will pitch and roll on the ocean.

MCD-4800
Maritime Connectivity

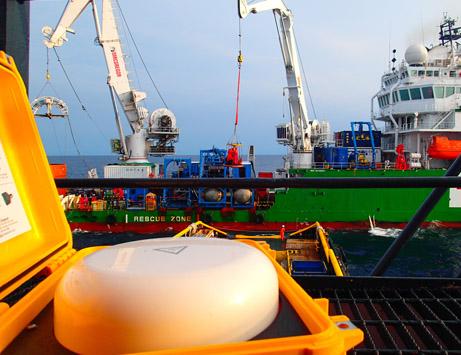

The MCD-4800 is an excellent solution to ocean faring vessels and oil-rigs. Here an IT specialist uses a wireless connection to establish connectivity. Wi-Fi may be shut off, and an Ethernet cable connection can be used for a more secure connection.

MCD-4800
Make or Receive Calls from Anyone

Calls are easily made between other terminals, satellite phones, cell phones or standard landline phones anywhere in the world, and incoming calls are free, although the calling party is burdened with the cost of calling. Local numbers from any country can be assigned to the BGAN terminal.

MCD-4800
Includes Standard Analog Phone

While the MCD-4800 is designed for Internet connectivity, it does include a standard analog phone. The phone port is issued an international satellite phone number. Any connected phone may make and receive calls from anyone on the planet for $0.99 cents usd per minute.

MCD-4800
Watertight Ethernet Port

A watertight cap protects the RJ-45 Ethernet port from the elements. A laptop or router may be connected directly to the MCD-4800. Public IP addresses are available. Ethernet lengths can be up to 328 feet (100 meters). Specially designed waterproof Ethernet connectors are available for this RJ-45 port to use with your Ethernet cable.

MCD-4800
Track Online Usage Real Time

The web interface interface gives you real time usage statistics that shows and approximate amount data transferred, phone calls minutes made during a single session, as well as over the lifetime of the terminal.

MCD-4800
Main Interface Features

The MCD-4800 main interface is accessed via any connected browser. Status screens show battery life, internal temperature, and links the Hughes 9450TW web interface for usage totals, parameter configurations including streaming services, static IP configuration, and SMS messaging.

MCD-4800
Internet Connection

Connecting a wireless device such as laptops, smartphones or tables to the MCD-4800 is as easy as selecting it from available access points. Wireless security is configurable from a web interface and includes MAC address filtering.

MCD-4800
WiFi Antenna

The 802.11 WiFi antenna is mounted next to the dome. Antennas use an RP-SMA connector and can be fitted with an optional 15dBi high-gain antenna (or any other off-the-shelf antenna) for increased WiFi range.

MCD-4800
Simple Operation

The power button for the MCD-4800 is inside of the case. Simply press the button to turn the system on. No other action is required for establishing a WiFi hotspot. The BGAN SIM card tray is also easily accessed from just inside the case lid.

MCD-4800
Global Wireless Hotspot

The MCD-4800 case does not need to stay opened in order to operate. Simply press the power button (inside the case) and 60 seconds later it will become a wireless hotspot anywhere on the globe for up to 5 hours on the internal battery.

MCD-4800
Wireless Access Point up to 100 Meters

The MCD-4800 uses the Inmarsat BGAN satellite network for broadband Internet connectivity. It then creates a 100 meter (328 feet) Wi-Fi access point in seconds for any wireless device to connect. Wi-Fi is helpful if users wish to be inside or move around a structure untethered from the case.
