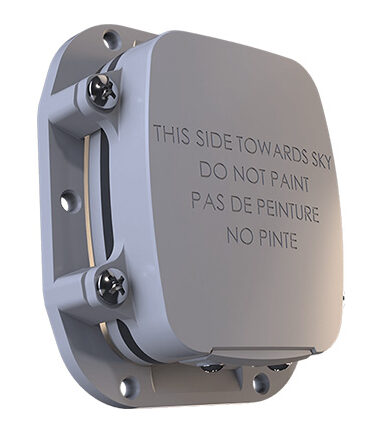

Globalstar SmartOne C
The SmartOne C is a compact, battery-powered satellite tracker designed for reliable, long-term asset monitoring. Now fully integrated with Cloudloop, it provides seamless access to tracking data, automated subscription management, and a user-friendly platform for real-time asset tracking.
Key Capabilities
Flexible satellite tracking and status monitoring for remote, mobile and high value assets.
Globalstar satellite tracking for assets beyond cellular coverage
External or AAA battery power with automatic backup switching
Configurable reporting schedules, motion alerts and theft detection
TTL serial and contact inputs for external sensors and switches
Rugged IP68 construction for long term outdoor asset monitoring
Small, Cost Effective Asset Tracker
SmartOne C is a compact, cost-effective device for tracking and monitoring assets in remote locations using the Globalstar LEO satellite network. Designed to be easily installed on to the exterior of valuable assets, SmartOne C can be line-powered or utilize AAA 1.5v lithium batteries for applications when a power supply is limited or unavailable.
With 12 different reporting times, interval or 24 hour operating modes and the ability to build custom schedules and alerts, SmartOnce C is a highly adaptable asset tracker to meet a wide variety of requirements.
SmartOne C is fully integrated with Cloudloop, Ground Control’s powerful IoT platform, simplifying asset tracking, subscription and device management.
Feature-Rich Asset Monitoring
SmartOne C is equipped with motion sensors, GPS capability and custom configured sensors, and can provide near real-time updates or triggered alerts using cost-effective short burst messages via the Globalstar satellite network.
Asset tracking managers can continuously monitor their containers as they move between different shipping methods, such as from ships to trains to lorries. Those concerned about unauthorized movements or thefts of high value assets can set up a geofence in Cloudloop Tracking, which increases the frequency of location information when an asset moves outside of its intended range.
SmartOne C can also connect to onboard sensors and switches via line inputs to send status updates, such as vehicle ignition switches or container door sensors.
Product Specifications
Satellite and Tracking
- Satellite Network
- Globalstar Low Earth Orbit satellite network
- Satellite Service
- Globalstar Simplex
- Tracking Type
- GNSS-based tracking for fixed and mobile assets
- Standard Messaging
- Wake, acquire a GNSS position, transmit location and return to sleep
- Reporting Schedules
- 12 programmable reporting intervals
- Operating Modes
- Supervisory schedules triggered by motion, alarm or other configured events
- Change of Location Detection
- Theft-alert reporting based on distance moved
- Reduced Messaging Mode
- Reduces satellite transmissions while the asset remains in the same location
Motion, Alerts and Sensors
- Motion Detection
- Integrated accelerometer with configurable vibration parameters and schedules
- Start and Stop Reporting
- Can transmit messages when movement starts or stops
- Motion-Based Interval Override
- Increases reporting frequency for a configured period or while the asset remains in motion
- Contact Closure Input
- Configurable contact closure parameters for external switches and alarms
- Diagnostic Messages
- Supports device diagnostic and low battery messages
- External Sensor Support
- Accepts user-defined data from compatible passive and smart sensors
Interfaces and Configuration
- Serial Interface
- TTL serial input and output
- User-Defined Messages
- Supports custom messages received through the serial interface
- Configuration Method
- Configured using a software tool installed on a Windows PC
- Hardware Control
- Physical on/off switch beneath the removable cap
- Configuration Cable
- USB configuration cable available separately
- I/O Cable Options
- Combined serial, power and I/O cables available separately
Power
- Battery Power
- 4 × AAA Energizer Ultimate Lithium L92 batteries
- Battery Voltage
- 1.5 V per battery
- Battery Life
- More than 1.5 years, depending on reporting and operating configuration
- External Power
- 5 V DC
- Regulated Power Option
- 8-24 V DC using the optional regulator cable
- Power Switching
- Automatically switches to battery backup if external power is interrupted
- Low Battery Reporting
- Configurable low battery message
Physical and Environmental
- Dimensions
- 68.6 x 82.6 x 25.4 mm / 2.7 x 3.25 x 1 in, including brackets
- Weight
- 102 g / 3.6 oz, including four batteries and mounting hardware
- Ingress Protection
- NEMA 4X and IP68
- Operating Temperature
- -30°C to +60°C / -22°F to +140°F
- Installation Options
- Industrial adhesive, brackets or screw mounting
Standards and Certifications
- Environmental Standards
- SAE J1455 and MIL-STD-810
- Materials Compliance
- RoHS compliant
- Regional Certifications
- FCC, ISED, CE, UKCA, ACMA, ANATEL, ENACOM, NOM, MTC, ARECOM, NCC, ICASA, TELEC, KCC, NTC and ITU GMPCS
Cloudloop Capabilities
- Tracking Platform
- Cloudloop Tracking for live and historical asset locations
- Tracking Features
- Geofencing, speed monitoring, movement alerts and event logging
- Subscription Management
- Device activation, airtime and subscription management through Cloudloop Subscription Manager
- Data Delivery
- Export correctly formatted tracking data through Cloudloop Data
- Regulatory Certifications
- CE, FCC, ISED and CAN ICES-3
- Product SKU
- FP-GC-GSATSOLAR
