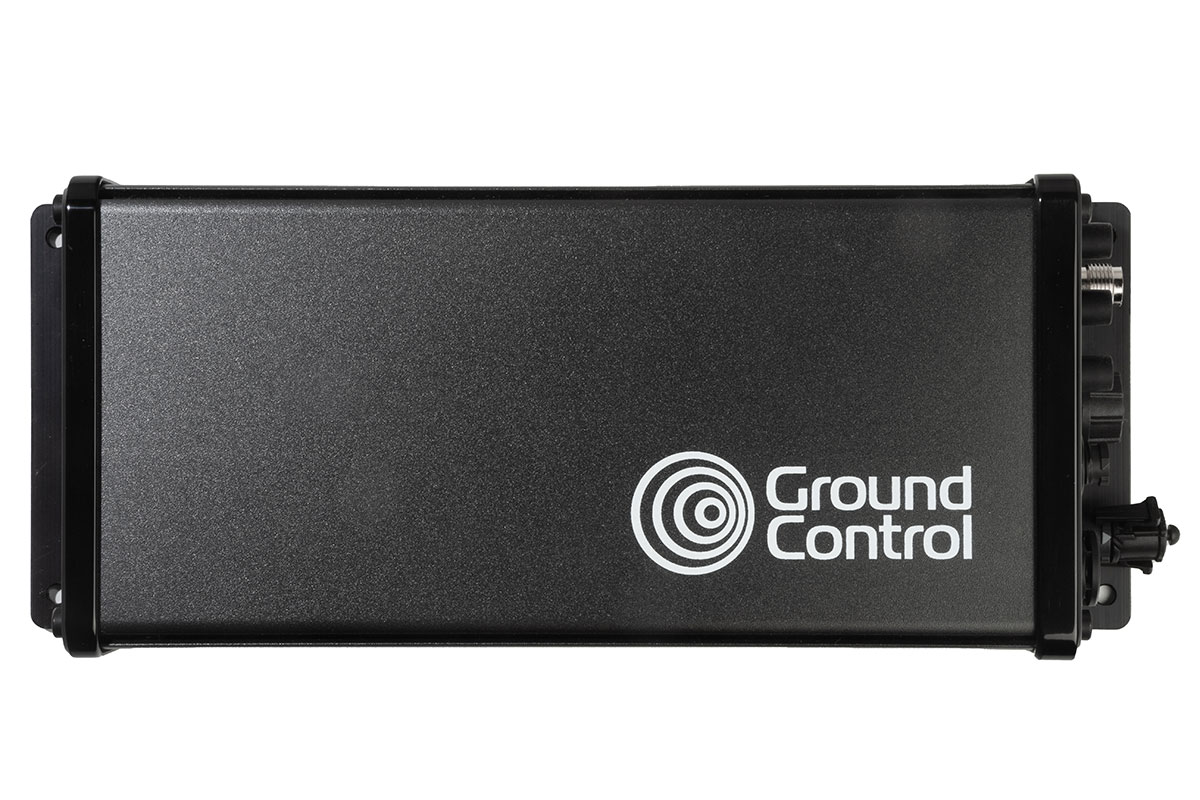

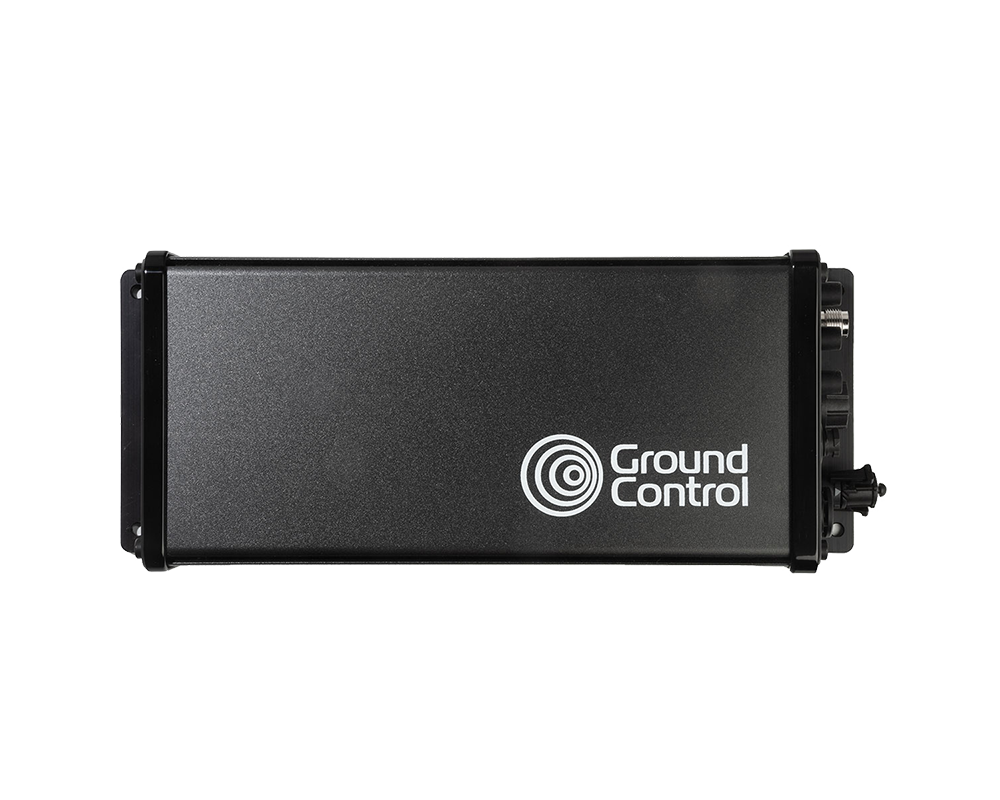

RockREMOTE Rugged

SKU: FP-RR-RUGGED

RockREMOTE Rugged is the waterproof, reliable solution to your remote IoT challenges, keeping your data flowing no matter what.

Securely connecting remote IoT assets using IP or message-based protocols, and providing diverse connectivity through Iridium Satellite or LTE networks, RockREMOTE is ideal for fixed or mobile environments anywhere in the world.

Airtime
Coverage Data sheet Developer Docs

RockREMOTE for Harsh Environments

Equipped with a range of physical serial, digital and LAN connectivity options, RockREMOTE Rugged is designed to enable connectivity of a wide range of measuring and monitoring sensor devices. Using Iridium’s truly global Certus 100 service and an omni-directional antenna, it’s perfect for critical communication in remote and mobile situations.

With no requirement for antenna-pointing and a constellation of 66 rapidly moving satellites, RockREMOTE Rugged can reliably transfer your data in close to real time, even with a poor or changing view of the sky. It’s intended for permanent outdoor installation in harsh environments.

The powerful Linux-based operating system offers containerized hosting for edge-computing applications. Comprehensive remote management (including diagnostics and firmware updates) is provided by Cloudloop.

RockREMOTE Rugged Use Cases

  • Used in data buoys and USVs to increase the amount of sensor data transmitted
  • Remote camera traps to transmit images of potential poachers in real-time

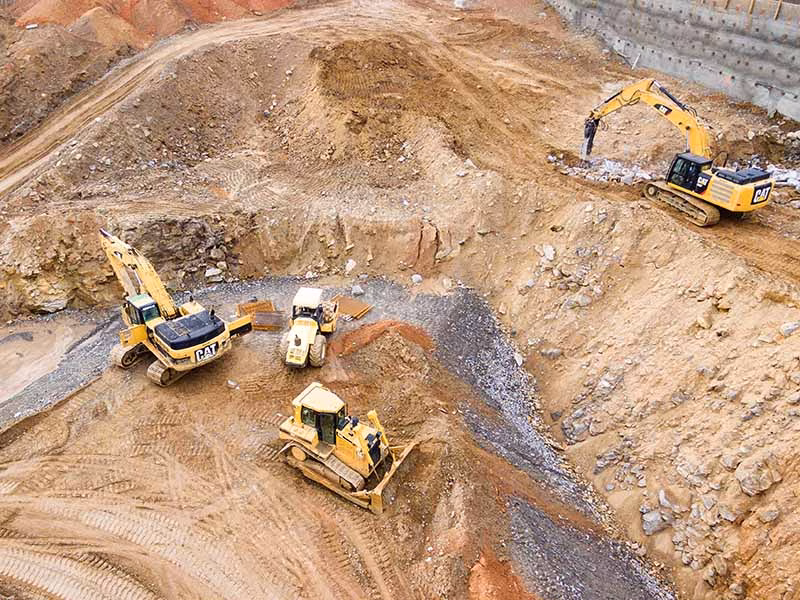

  • To monitor and manage heavy machinery in agriculture, construction and mining
  • To transmit SCADA system data from remote utilities and renewables sites
  • Pipeline monitoring for safety, leak detection, and to reduce unplanned maintenance costs
  • Monitoring and managing valuable remote assets such as mobile generators
KEY FEATURES
TECH SPECIFICATION
AIRTIME
Iridium Messaging Transport
WHAT'S IN THE BOX
  • Intuitive local web UI and RESTful JSON API
  • Automatic WAN failover
  • Configurable Firewall
  • Hosted applications (Edge computing)
  • Remote Management with Cloudloop Device Manager (CDM)
  • Over-The-Air firmware updates
  • Protocol facades for MQTT and FTP
  • IP67 rated: designed for permanent outdoor installation in harsh environments
  • Omni-directional, with no antenna pointing required; ideal for fixed deployment in hilly or woody locations, or for on-the-move applications
  • Simple to deploy, IP-based over Ethernet or Wi-Fi, or utilize Iridium Messaging Transport
  • Dual mode Iridium Certus satellite network combined with LTE

Physical & Environmental

  • Size: 250 mm x 97 mm x 61 mm
  • Mounting: Fixings for deck/bulkhead and pole mounting
  • Antenna Size: 150 mm x 95 mm (diameter), 191.5 mm with mounting base included
  • Weight: 1.2 kg
  • Operating Temperature: -40C to +70C
  • Ingress Rating: IP67
  • Vibration Rating: EN 300 019-2-5, EN 300 019-2-7



Communications

  • Iridium: Certus 100: IP (22/88 Kbps) and IMT (100 KB per message)
  • Cellular: LTE Cat 1 & Cat 4
  • GNSS: GPS, Glonass, Bei-dou, Galileo, QZSS
  • WiFi: 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac

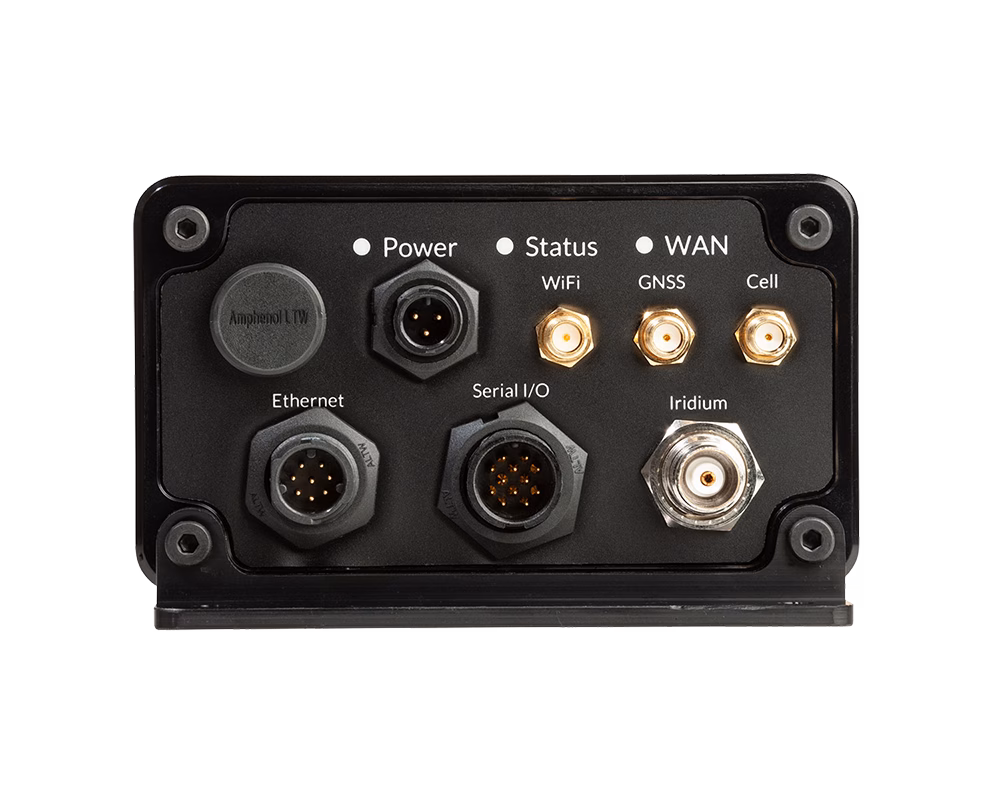

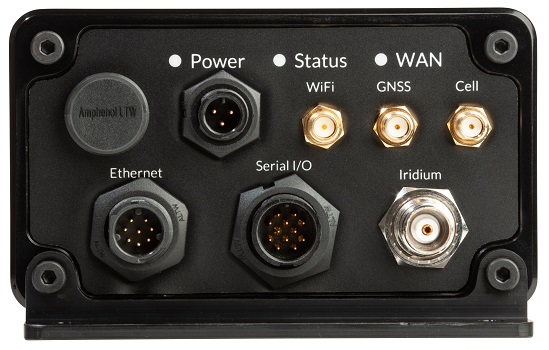

Interfaces

  • Iridium: TNC cable assembly to supplied Certus antenna
  • Cellular, GNSS, WiFi: SMA connector to external antennas
  • Ethernet: M12 connector, supplied hybrid cable
  • Serial & GPIO: M12 connector
  • SIM: Field accessible Certus & Cellular SIM slots



Electrical

  • DC Input: 10-30V DC protected
  • Power: 0W (sleep), 5W (idle), 9W (average transmit)
  • Compliance: CE, FCC, IC

These are some example prices for airtime. For full details of our Iridium Certus 100 airtime, please visit our Certus 100 Service Plans page.

Plan:
Flex
5 MB
50 MB
200 MB
Price Per Month (GBP):
£22.00
£46.00
£174.00
£553.00
Included Data:
0 MB
5 MB
50 MB
200 MB
Overage Fee / MB:
£16.52
£10.43
£6.09
£4.35
Minimum Contract Term:
12 Months
12 Months
12 Months
12 Months
SKU:
AT-CER100-IOT-0MB-12
AT-CER100-IOT-5MB-12
AT-CER100-IOT-50MB-12
AT-CER100-IOT-200MB-12
Plan:
Flex
5 MB
50 MB
200 MB
Price Per Month (USD):
$25.00
$53.00
$200.00
$636.00
Included Data:
0 MB
5 MB
50 MB
200 MB
Overage Fee / MB:
$19.00
$12.00
$7.00
$5.00
Minimum Contract Term:
12 Months
12 Months
12 Months
12 Months
SKU:
AT-CER100-IOT-0MB-12
AT-CER100-IOT-5MB-12
AT-CER100-IOT-50MB-12
AT-CER100-IOT-200MB-12

Taking full advantage of IMT, the latest Iridium network service evolution, Ground Control has developed a Satellite IoT delivery network. It’s designed to deliver large message payloads for a wide range of IoT applications in a highly cost effective way.

It provides an end-to-end solution comprised of:

1. An MQTT application deployed on the RockREMOTE terminal; this provides the interface for your remote application to submit and receive data payloads
2. The Iridium IMT satellite service
3. An MQTT server application, delivered via Ground Control’s Cloudloop platform, which enables your IoT service application to submit and receive data payloads.

Learn more about IMT

Taking full advantage of IMT, the latest Iridium network service evolution, Ground Control has developed a Satellite IoT delivery network. It’s designed to deliver large message payloads for a wide range of IoT applications in a highly cost effective way.

It provides an end-to-end solution comprised of:

1. An MQTT application deployed on the RockREMOTE terminal; this provides the interface for your remote application to submit and receive data payloads
2. The Iridium IMT satellite service
3. An MQTT server application, delivered via Ground Control’s Cloudloop platform, which enables your IoT service application to submit and receive data payloads.

The following items are supplied with your RockREMOTE Rugged device:

  • RockREMOTE Rugged unit with Iridium SIM card installed

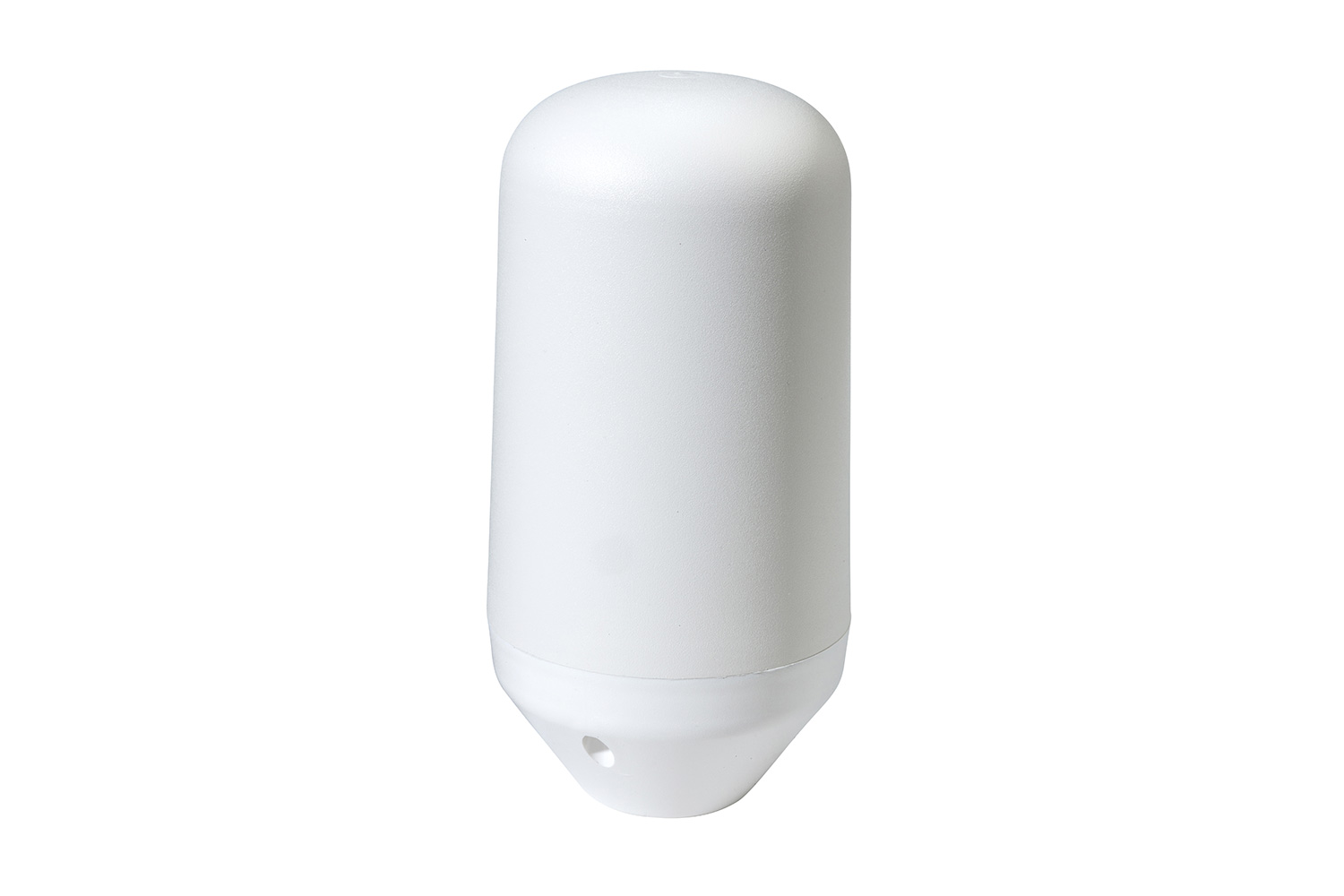

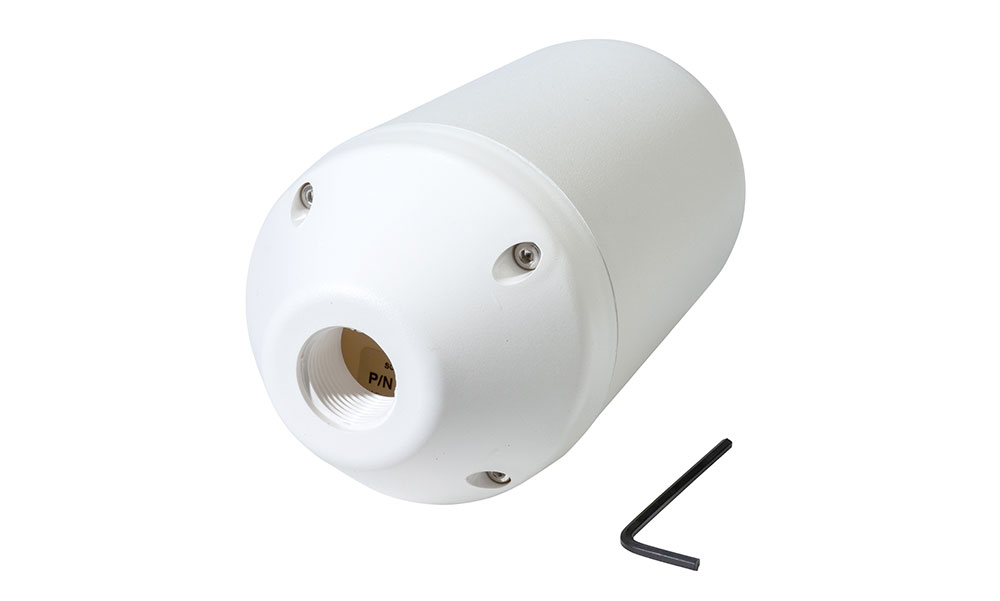

  • Omnidirectional Certus 100 antenna

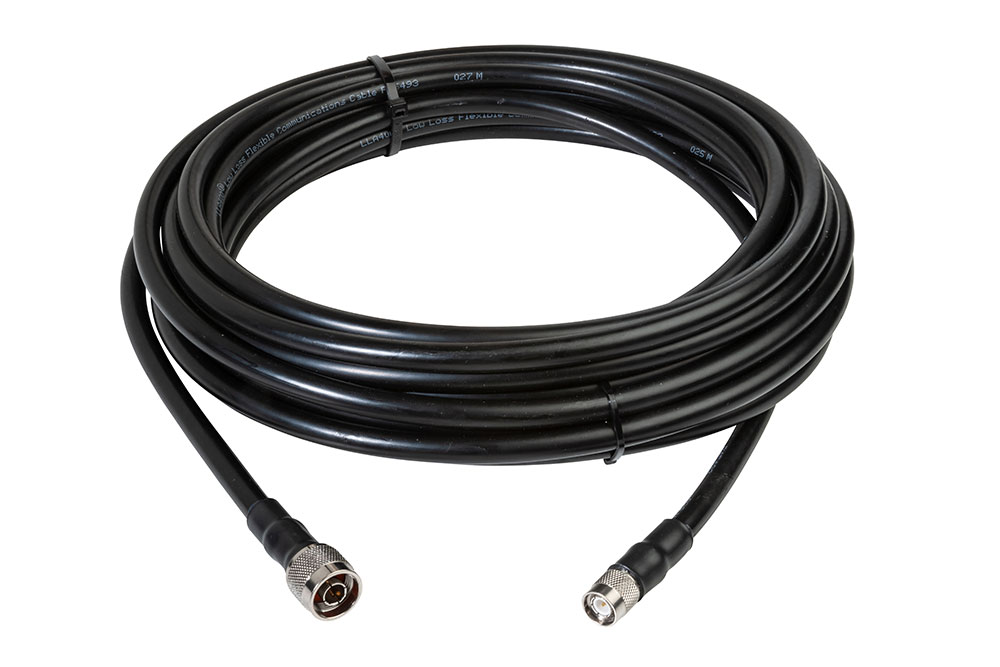

  • 9m antenna cable assembly
  • DC power cable assembly (2m for RockREMOTE Rugged with IP67 connector)



Optionally, you may also have been provided with:

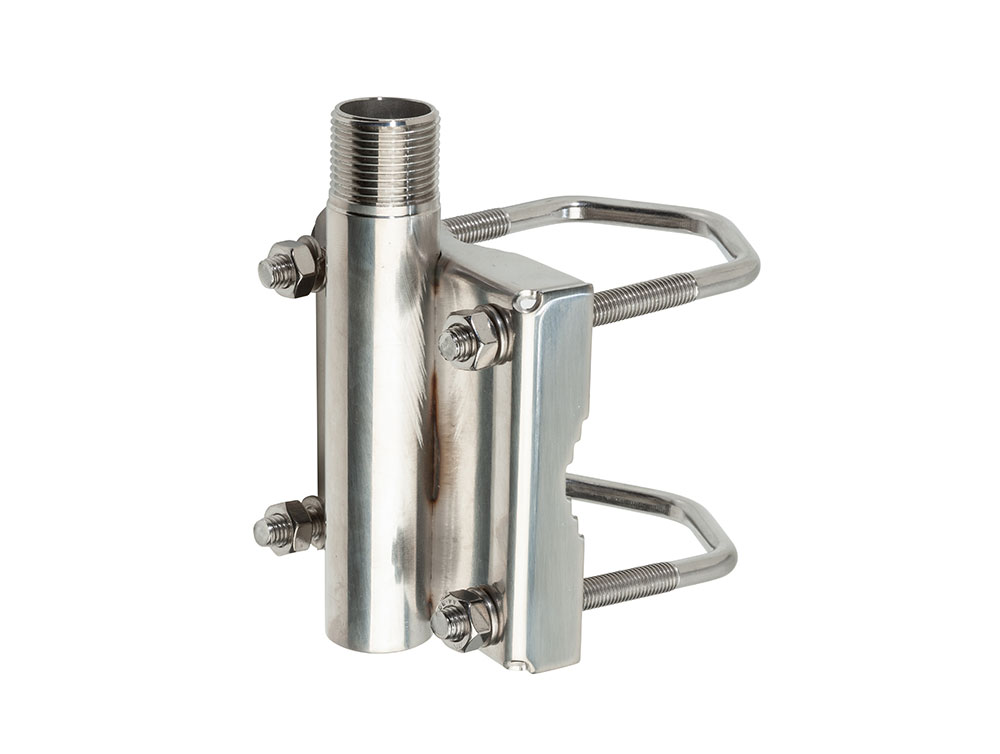

  • An appropriate antenna mounting bracket (see Accessories)
  • LTE, WiFi and GNSS antennas

What's included with the RockREMOTE Rugged
