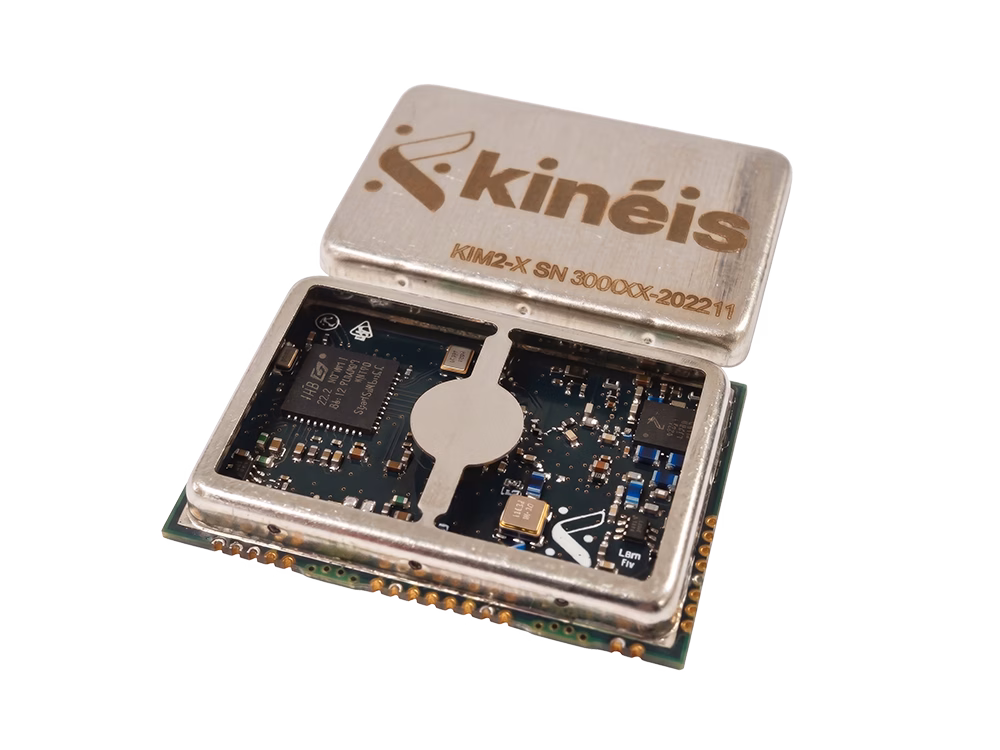

KIM2 Module
The KIM2 is a compact, low power transceiver module designed to deliver satellite IoT connectivity via the Kinéis Low Earth Orbit satellite network.
Offering reliable bidirectional message delivery, Doppler based positioning, and flexible power management, the KIM2 provides hardware developers with a practical way to integrate global satellite messaging into remote telemetry systems.
Key Capabilities
Utilizes the global Kinéis satellite network
Ultra low power consumption
Bi-directional messaging support
Compact design for easy integration
Configurable via standard AT commands
Kinéis Satellite Connectivity for IoT
Operating on the Kinéis LEO network, the KIM2 module provides global coverage for remote IoT deployments. It supports short burst bidirectional messaging, allowing field sensors to transmit data while receiving acknowledgments or updates back from the satellite network.
Built in Doppler localization also provides basic, GPS-free positioning to help track remote assets, keeping overall hardware costs and energy requirements to a minimum.
Kinéis Coverage Map
Optimized for Low Power IoT Development
Engineered specifically for battery powered field devices, the KIM2 is optimized for standard 3.6V batteries and incorporates advanced transmission strategy management to extend operational life in remote environments. Its small surface mount footprint and minimal idle power draw make it a versatile option for long term deployments in environmental monitoring, agriculture, infrastructure, and logistics.
Host controllers can utilize autonomous or single command modes, toggling the module between active transmission and ultra-low power idle states via a dedicated On/Off pin to conserve energy between scheduled messages.
For development teams building custom hardware, the module pairs perfectly with the KIM2 Shield, an expansion board designed to streamline early evaluation, shorten development time, and speed up time to market before final surface mount assembly.
Product Specifications
Satellite and Network
- Satellite Network
- Kinéis LEO satellite constellations
- Messaging
- Bidirectional (transmit and receive)
- Frequency Band
- 399.91 to 403 MHz
- Downlink Frequency
- ~401 MHz
- Payload Capacity
- 19 bytes of user data (typical 16 Bytes Tx / 16 Bytes Rx)
- Transmission Speed:
- Tx frame duration under 1 second
- Output Power
- 27 dBm nominal
- Positioning
- Integrated Doppler localization support
Interfaces and Hardware
- Form Factor
- 48 pin surface mount module (SMT)
- Host Interface
- UART protocol
- Command Set
- Advanced command interface using AT commands
- Power Control
- Dedicated On/Off pin for external MCU enabling
- Hardware Integration
- Available GPIOs
- RF Interface
- Board edge connection
Power and Electrical
- Supply Voltage
- 3.3V to 5V DC (3.6V typical, internally regulated)
- Transmit Current
- Typical 395 mA @ 3.6V in Tx mode
- Receive Current
- Typical 75 mA @ 3.6V in Rx mode
- Idle Current
- Less than 3 µA
Physical and Environmental
- Dimensions
- 36.6 x 25.4 x 5 mm
- Weight
- 6 g
- Operating Temperature
- -40°C to +85°C / -40°F to +185°F
- Storage Temperature
- -40°C to +90°C / -40°F to +194°F
Standards and Certifications
- Regulatory Certifications
- FCC and CE compliant
- Network Certifications
- Kinéis and CNES certified
