Cobham Explorer 727

SKU: FP-GC-BGANT727

The powerful Explorer 727 satellite internet system is the perfect terminal for professionals who require a very stable connection, often to transmit video. With speeds of up to 492 Kbps and stable streaming speed of 450 Kbps, this terminal is ideal for live event video broadcasting using the Viasat Go-anywhere Pro Streaming service.

Airtime
Coverage

Powerful On-the-Move Satellite Internet Terminal

Using the Explorer 727 is as easy as turning on the power switch. A standard Internet connection is available in about 1 minute from startup.

For video broadcasters, Ground Control can configure the system to automatically establish a streaming unshared channel for superior data performance (useful for live event/news video broadcasters).

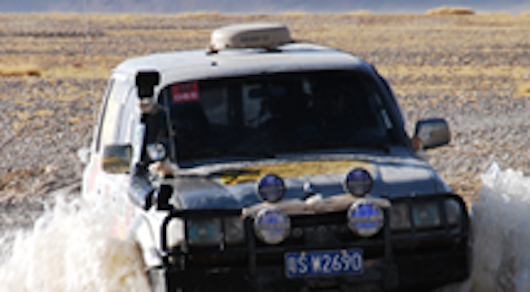

Cobham-Explorer-727-on-Vehicle
KEY FEATURES
TECH SPECIFICATION
AIRTIME*
WHAT'S IN THE BOX
  • Voice and data communications on the move.
  • Easy to use and operate. Simply turn the unit on, and connect any laptop.
  • Auto-pointing while in motion or parked (if it requires line-of-sight to the Viasat satellite).
  • Up to 492Kbps internet speeds using Go-anywhere Pro Standard Service Plans from Ground Control.
  • Up to 450Kbps unshared CIR 1:1 speeds with Go-anywhere Pro Streaming Services.
  • Simple three-piece design: Mag-Mount Antenna, Controller and IP Handset.
  • Easy to transport. Place system in a medium-sized suitcase for use anywhere.
  • Antenna available in two colors – white or tan.
  • Rackmount version of controller available.
  • Integrated web console for system status, wireless security and other parameters.
  • There are four RJ-45 Ethernet ports for multiple device connections.
  • All Ethernet ports are POE (Power Over Ethernet) for specialized devices (IP camera).
  • Physical Dimensions (Antenna): (H) 15.2cm / 6.3″ (Ø) 47.7cm / 18.76″ (W) 6kg / 13.2lbs
  • Physical Dimensions (Transceiver): (H) 4.25cm / 1.67″ (W) 23.1cm / 9.72″ (D): 27.3cm / 10.63″(W) 2.5kg / 5.5lbs
  • Satellite Service: Viasat Go-anywhere Pro Service Plans – Provided by Ground Control
  • Voice/Premium Voice : 4 kbps AMBE +2 / 3.1 kHz audio, 64Kbps
  • Standard IP Data: Up to 492 kbps
  • Streaming CIR 1:1: 32, 64, 128 and 256Kbps up to 450Kbps Go-anywhere Pro Streaming X-Stream when stationary
  • ISDN: UDI 64Kbps / RDI 56Kbps
  • SMS: 160 Characters
  • LAN Interface: 4 x RJ45 10/100 Mbps ethernet connections
  • Other Interfaces: 1 x RJ45 ISDN, 1 x 5 pin GPIO
  • Power: 10.5-32VDC input 150W max
  • Operating Temperature: -25°C to +55°C / -13°F to +131°F
  • Storage Temperature: -40°C to +85°C / -40°F to +185°F
  • Humidity: 95% non-condensing at +40°C/+104°F
  • Water and Dust Protection: IP56 (Antenna), IP30 (Transceiver)
  • Approvals: CE, GMPCS, FCC, Viasat Land Class 10
Plan:
100 MB Pre-Paid Sim
300 MB Pre-Paid Sim
1,200 MB Pre-Paid Sim
3 GB Pre-Paid Sim
Price Per Month:
£460.00
£1,280.00
£4,910.00
£12,160.00
Included Data:
300 MB
600 MB
1,200 MB
3 GB
Activation Fee:
£35.00
£35.00
£35.00
£35.00
Valid For:
3 Months
1 Year
1 Year
1 Year
SKU:
AT-BGANPPD-100MB-3-23
AT-BGANPPD-300MB-12-23
AT-BGANPPD-1200MB-12-23
AT-BGANPPD-3GB-12-23
Plan:
100 MB Pre-Paid Sim
300 MB Pre-Paid Sim
1,200 MB Pre-Paid Sim
3 GB Pre-Paid Sim
Price Per Month:
$525.00
$1,467.00
$5,639.00
$13,980.00
Included Data:
100 MB
300 MB
1,200 MB
3 GB
Valid For:
3 Months
1 Year
1 Year
1 Year
1 Year
SKU:
AT-BGANPPD-100MB-3-23
AT-BGANPPD-300MB-12-23
AT-BGANPPD-1200MB-12-23
AT-BGANPPD-3GB-12-23
  • 13.8″ Inch antenna with built-in magnetic mounts

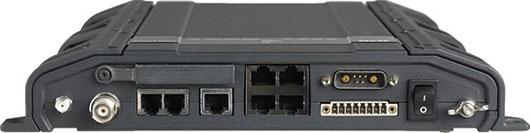

  • Transceiver with 2 Ethernet Ports and 1 Phone port
  • 2.7 Meter and 8 meter antenna cable
  • IP Handset phone for making and receiving calls
  • 5m (16′) Ethernet cable
  • DC power cable
  • Antenna mounting kit (fixed/rail)
  • Cable support
  • Quickstart guide, users manual, installation manual on flashdrive.

*For full details of our Viasat Go-anywhere Pro airtime rates, please visit our Go-anywhere Pro Service Plans page.

Would you like to know more?

If you'd like a quote for the Explorer 727 hardware, and / or Viasat Go-anywhere Pro airtime, please call or email us, or complete the form, and we'll be happy to help.

If you're not sure which device / satellite constellation will best meet your needs, get in touch; we have 20 years' experience and we'll provide impartial, expert advice.
