The RockREMOTE Series
RockREMOTE delivers a reliable and flexible, IP or message-based, satellite communications solution for fixed, semi-fixed or mobile M2M / IoT applications worldwide.
Customers select between Ethernet, Wi-Fi or Serial RS232/485 for their communications interface requirements. All devices support the new Iridium Messaging Transport (IMT) service which materially lowers the cost of your transmissions, in addition to Iridium Certus 100 (22/88 Kbps).
RockREMOTE Mini OEM |
RockREMOTE Mini |
RockREMOTE Rugged |
RockREMOTE |
|
|
Form Factor |
Integrator PCB |
Externally Mounted |
Externally Mounted |
Internally DIN Rail Mounted |
|
Dimensions |
175 x 60 x 37 mm |
182 x 75 x 53 mm |
250 x 97 x 61 mm |
193 x 120 x 117 mm |
|
Weight |
287 g |
624 g |
1.2 kg |
1.26 kg |
|
Environmental |
No Rating |
IP66 |
IP67 |
IP5x |
|
Power Consumption |
<30mW (sleep), <0.25W (idle), <7.5W (average transmit) |
<30mW (sleep), <0.25W (idle), <7.5W (average transmit) |
0W (sleep), 5W (idle), 9W (average transmit) |
0W (sleep), 5W (idle), 9W (average transmit) |
|
Iridium Certus Antenna |
Various Approved Options |
Various Approved Options |
Various Approved Options |
Various Approved Options |
|
Satellite |
Iridium Certus 100 (22/88 Kbps) + IMT (100 kB per message) |
Iridium Certus 100 (22/88 Kbps) + IMT (100 kB per message) |
Iridium Certus 100 (22/88 Kbps) + IMT (100 kB per message) |
Iridium Certus 100 (22/88 Kbps) + IMT (100 kB per message) |
|
Cellular |
|
|
LTE Cat-4 & Cat-1 |
LTE Cat-4 & Cat-1 |
|
Interfaces |
Ethernet (available on pin out), Serial RS232, RS485, GPIO (2xI, 2xO) |
Ethernet, Serial RS232, RS485, GPIO (2xI, 2xO) |
Ethernet, Wi-Fi, Serial RS232, RS485 |
Ethernet, Serial RS232, RS485/RS422 (optional Wi-Fi) |
|
Bluetooth |
|
|
|
|
|
Hosted Applications |
Limited |
Limited |
Full |
Full |
|
MQTT & FTP Facades |
|
|
|
|
Iridium Certus 100 Information

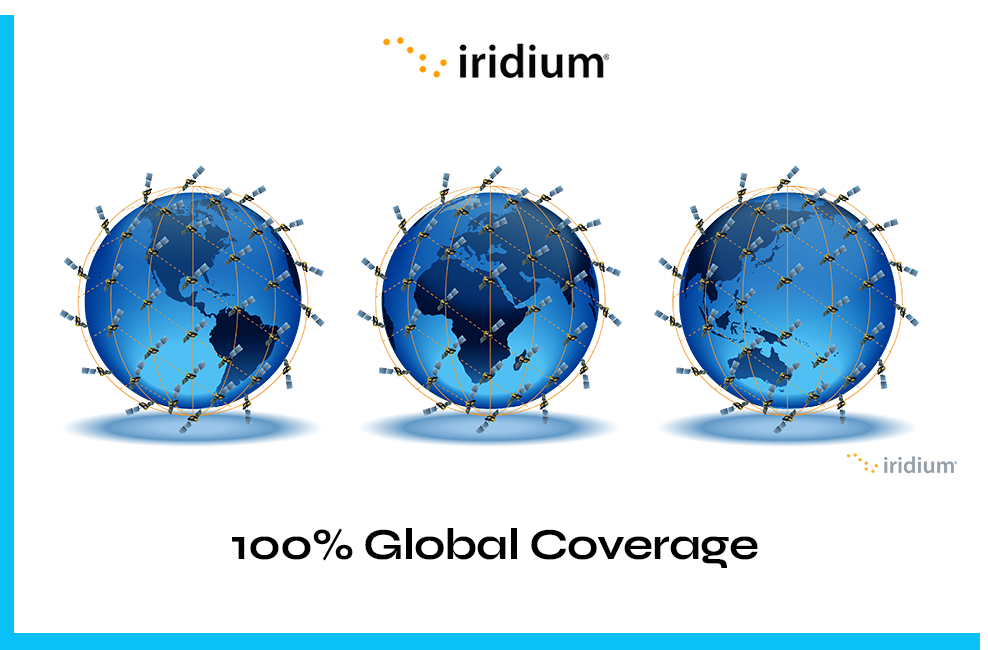

- Pole to pole coverage with no ‘line of sight’ challenges
- Leverages the L-Band frequency – stable and resilient, not susceptible to ‘rain fade’
- L-Band antennas are small and lightweight, ideal for portable and mobile use
- Omni-directional antennas with no moving parts
- IP data speeds of up to 88 Kbps, ideal for SCADA applications
- Lower latency and less signal attenuation than BGAN M2M
- Low power, small form factor equipment
- Easy to deploy with no satellite pointing required.
Iridium Certus 100 Service Plans and Pricing
For more information about our Certus 100 Service Plans, please visit our dedicated Certus 100 airtime page.
Benefits of Certus 100 Service
IP-Based for Easy Integration
Satellites in Low Earth Orbit
Supported by Industry Experts
Cost Effective and Flexible Airtime
Cloudloop Platform and Applications
Comparing Satellite IoT Connectivity
It’s tricky to compare airtime services because so much depends on how much data you need to send, but as a rough guide, we’ve put together the following comparison points. Get in touch if you’d like any help deciding what will work best for you.
News Stories and Posts About Iridium Certus 100
-
Karbon-X Leads the Way in Carbon Emissions Validation with RockREMOTE Rugged
Through the implementation of satellite IoT technology, Karbon-X has transformed how carbon emissions are monitored and how the effectiveness of reforestation projects is validated.
Read more -
Exploring the New Iridium Certus 9704: Compact, Low Power, and Built for IoT
Introducing the Iridium Certus 9704 transceiver: a compact, low-power IoT solution for remote connectivity. Learn how it compares to the 9603 and 9770 models.
Read more -
IP vs Messaging for Satellite IoT Data Transmission
We discuss the cost and efficiency considerations of choosing between IP and messaging for satellite IoT data transmission, and the importance of selecting the most suitable method based on specific applications.
Read more -
RUDICS vs Certus 100: is it time to make the switch?
Delve into the debate: RUDICS vs. Certus 100. Explore faster data, cost efficiency, and superior connectivity options. Ready to upgrade your remote data transfer? Read more.
Read more -
What is Iridium Certus & what Speeds are Available? [Infographic]
Our infographic provides an at-a-glance guide to the Iridium Certus 100, 200 and 700 services. Find out the best applications for each, and our recommended devices.
Read more -
Finding Optimum Oil and Gas Sites with 40Geo Drifting Data Buoys
40Geo captures geographical information from hard-to-reach areas with drifting data buoys to aid decisions about when and where to situate oil and gas operations. Using the RockBLOCK 9602, the team can extract close to real-time data under any circumstances, unaffected by location, weather or cellular coverage.
Read more -
Real-time Oceanic and Meteorological Telemetry with RockREMOTE
MTE’s Viking Buoy has been deployed across North America to deliver maritime IoT insights for the scientific research community. Here’s how upgrading to the RockREMOTE and Certus 100 service has helped further their mission.
Read more -
Preventing poaching in Gabon with RockREMOTE IMT
Leveraging the new IMT satellite service by Iridium, RockREMOTE exposes integrators to an industry-standard MQTT interface. Ground Control’s development of a new Satellite IoT Gateway enables Digital Forest to quickly and easily integrate two-way messaging into their application using standard MQTT libraries for their platforms.
Read more
Is Iridium Certus 100 the right airtime for your project?
Ground Control are one of a very small number of Iridium partners chosen to design and build Iridium Certus 100-enabled hardware, and there’s very little we don’t know about the pros and cons of this service.
Please call or email us, or complete the form, if you’d like to discuss your project, and we’ll provide expert, impartial advice on the best hardware, airtime and service to meet your needs.
