SCADASat by TSAT

SKU: tsat-3500

The SCADASat by TSAT satellite system is specifically designed to meet the demanding requirements of the SCADA and utility industries. SCADASat by TSAT provides a private satellite network operating a direct communication channel between a process control centre and remote locations.

Enquire
Coverage Data sheet

Client Owned Satellite Network For Critical Telemetry

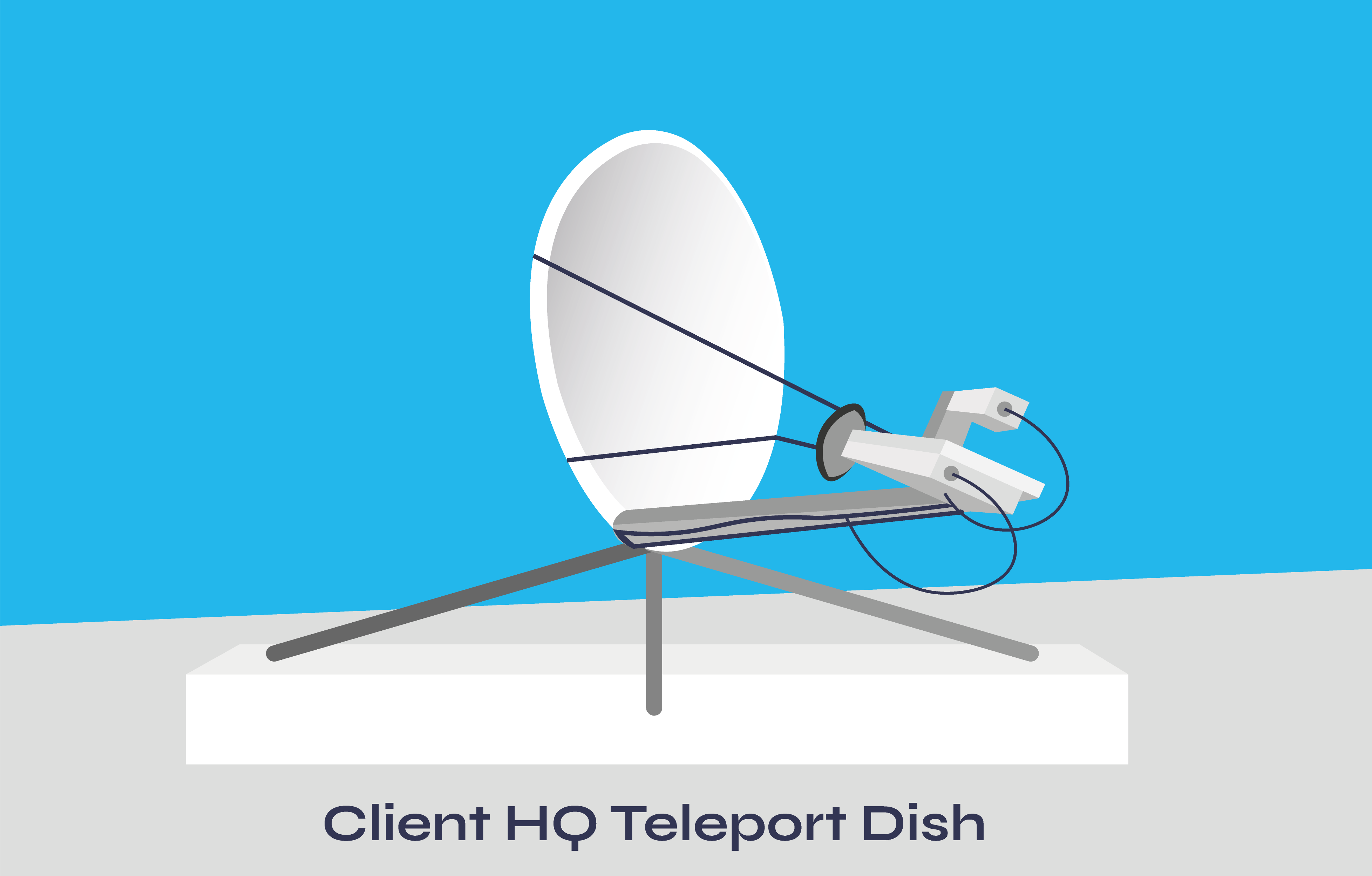

By locating a private TSAT3500 HUB at a control centre, complete independence of any public infrastructure is obtained, and secure and reliable communication is assured. Reliability can be enhanced further with implementation of the load-sharing redundant HUB option.

TSAT’s highly unique private satellite network solution features an industry leading mini VSAT hub that is specifically engineered to support mission critical applications (SCADA / Telemetry) in the energy and utility markets. The ruggedised and utility hardened-hardware is designed to provide years of reliable operation in remote locations and harsh environments.

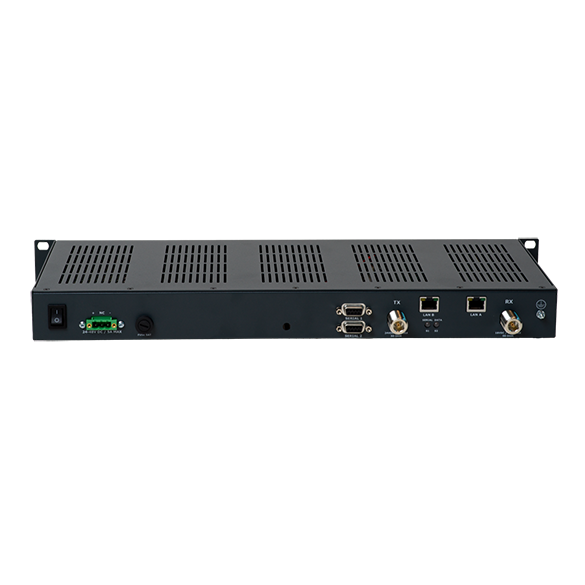

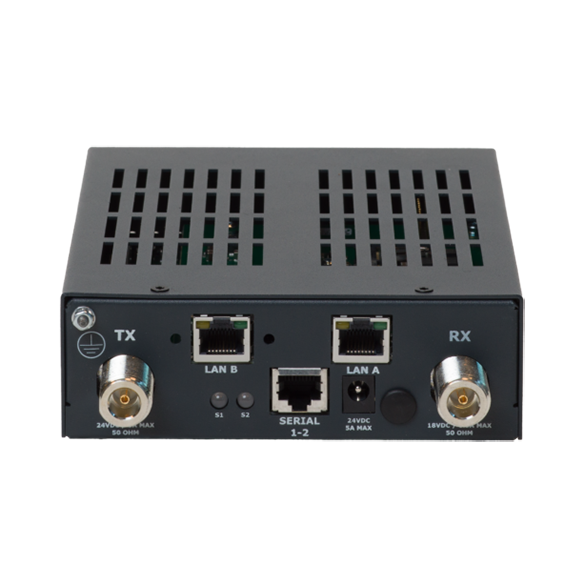

The new SCADASat by TSAT solution – the TSAT 3500 – comes in three variants: a desktop version, 1u rack mounted, and an outdoor option.

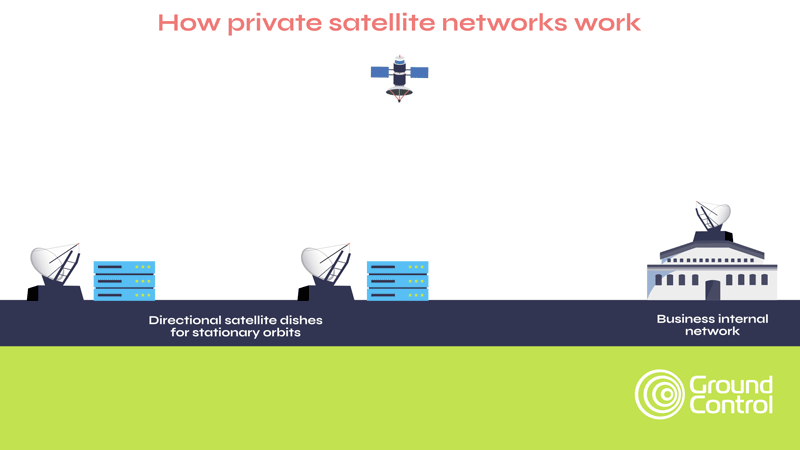

2-Private-Text-Satellite-

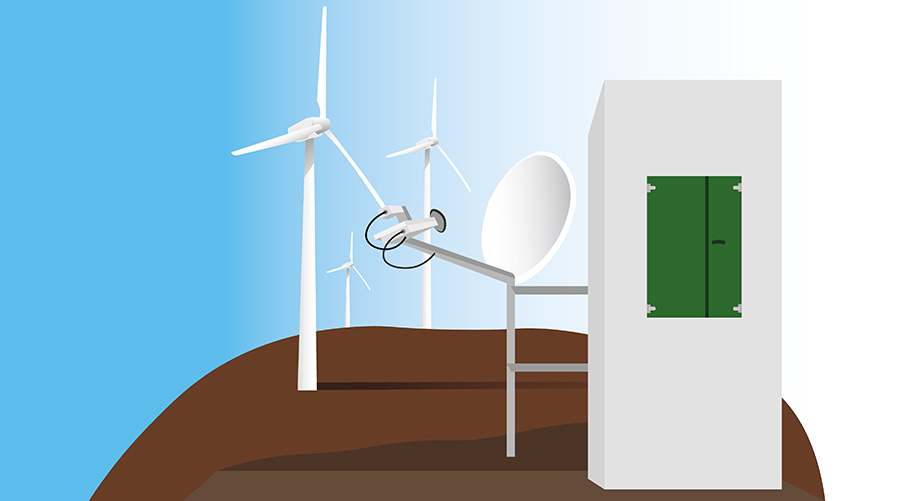

5-Tsat-Outside

Low Capital Investment and Scalability

The SCADASat solution is the lowest cost for establishing a private satellite network specifically engineered for SCADA and M2M telemetry making it suitable for even small single-site installations. There will be room to grow to any size over time on the initial equipment.

The SCADASat solution uses spectrum and bandwidth resources efficiently, so that recurring costs are minimised. The total cost of ownership (TCO) of the SCADASat is low, making this a viable option even for single-site installations, with the ability to scale up as needed.

KEY FEATURES
TECH SPECIFICATION
SUPPORTED PROTOCOLS
CYBER SECURITY
  • Dedicated, low-cost VSAT HUB
  • Compliant with legacy and IP SCADA protocols
  • Ideal for a range of SCADA and Telemetry applications
  • Flexible, scalable configurations
  • Ultimate in security – a closed “private” satellite network
  • Satellite bandwidth efficient – fixed low communication cost
  • Network management tools designed for SCADA and M2M
  • Data rates supported from 8kbps to 832kbps
  • Modular and scalable to meet network requirements
  • Integrates with existing TCP-IP and Serial SCADA M2M devices
  • Application protocol independent suitable for DNP3, WITS & legacy protocols
  • Provides a fully routed IP Infrastructure supporting Peer to Peer connections
  • Enhanced security – 256 AES encryption (option)
  • Cyber secure feature set: VLAN (Virtual LAN) support, file system encryption, secure Linux login to avoid unauthorised access, SW/FW upgrade over-satellite authentication
  • Easily upgrade from existing private wire / LTE network
  • Own and control your own network and satellite segment
  • Topology: Star (FDD) and Mesh (TDD)
  • Data transmission speeds: 8kbps to 832kbps
  • Frequency range: L-band 950-2150MHz
  • Power supply: BUC +24V, 3A max; LNB 18V, 0.5A max
  • Serial interfaces: RS232, 422 or 485, 1 x USB-C; 2 x DB9 for hub and 19” remote; 1 x RJ45 for desktop remote with 2 serial ports
  • Network interfaces: 2 x RJ45 10/100Mbps Ethernet
  • Dimensions (LxWxH): Hub and 19” remote – 177mm x 482.6mm x 44mm / Desktop remote – 177m x 133mm x 44mm
  • Weight: Hub – 2.5Kg / 19″ remote – 2.3Kg / Desktop remote – 1Kg
  • Operating temperature: 0° to +50°C
  • Power supply: Hub and 19” remote – 24 to 48VDC / Desktop remote – 24VDC from 100-240VAC/50-60Hz power adapter
  • QoS: DSCP – DiffServ (differentiated services) based IP prioritisation
  • VoIP: Extended and verified multi-simultaneous IP voice-calls over satellite (including RT-to-RT calls)
  • Roll-off factor: The 3500 is extended to support roll-off down to 0.1 (previously 0.3), which allows for more effective use of space segment
  • BoD: Extended to configure max/min throughput, as well as dynamic adaption to actual throughput.
  • TCP, UDP, RIP, ICMP, ROHC, GRE, Static Routes, ACL, IPv4
  • Circuit switched
  • Leased line, dial-up and multidrop (grouping)
  • SCADA
  • RP570, ADPL 180, Comli, Sinaut S1, Modbus RTU/IP/ASCI, DNP-3.0, WITS, Serck Proteus
  • IEC-60870-101 and 104, IEC-61850 etc.

SCADASat complies with IEC 61850 standards and AES-256 encryption and authentication. Further, it’s isolated from the Internet or any other network. A SCADASat satellite network rides over a dedicated space-segment of one or more satellites for redundant fail-over reliability, including remote-site to remote-site (point-to-point) mesh type communication.

Cyber security features include: VLAN (Virtual LAN) support, file system encryption, secure Linux login to avoid unauthorised access, and SW/FW upgrade over-satellite authentication.

Powerful Network Management Tools

Windows based Graphical User Interfaces allow for easy network administration and diagnostic tools for SCADA and M2M telemetry.

CLIENT_NOC_Equipment

Talk to us about your critical telemetry needs

The SCADASat solution is intended for critical infrastructure where the telemetry provided is essential for operations. Having a primary or secondary connectivity solution independent of any public infrastructure, which is as secure and reliable as connectivity solutions get, has been a game-changer for many of our customers.

To talk through your particular requirements, please call or email us, or complete the form; we will provide objective, expert advice based on 20+ years of delivering remote connectivity.
