Cobham Explorer 727

SKU: FP-GC-BGANT727

The powerful Explorer 727 BGAN satellite system is the perfect terminal for professionals who require a very stable connection, often to transmit video. With speeds of up to 492 Kbps and stable streaming speed of 450 Kbps, this BGAN terminal is ideal for live event video broadcasting.

Inquire
Airtime
Coverage

Powerful On-the-Move BGAN Terminal

Using the Explorer 727 is as easy as turning on the power switch. A standard Internet connection is available in about 1 minute from startup.

For video broadcasters, Ground Control can configure the system to automatically establish a streaming unshared channel for superior data performance (useful for live event/news video broadcasters).

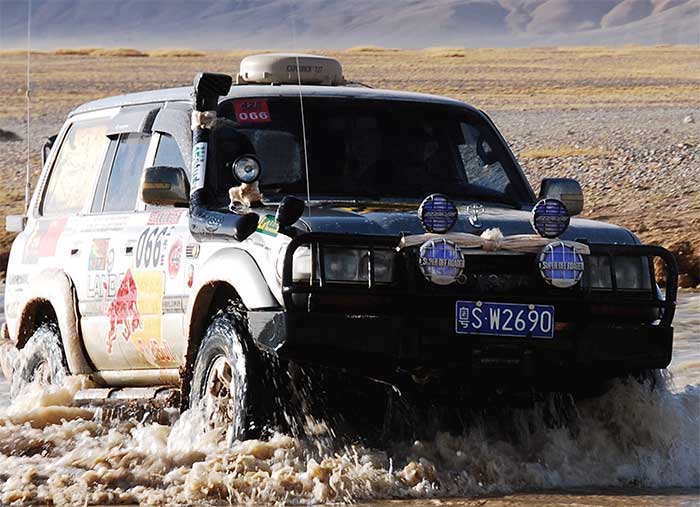

Cobham-Explorer-727-on-Vehicle
KEY FEATURES
TECH SPECIFICATION
AIRTIME*
WHAT'S IN THE BOX
  • Voice and data communications on the move.
  • Easy to use and operate. Simply turn the unit on, and connect any laptop.
  • Auto-pointing while in motion or parked (if it requires line-of-sight to the BGAN satellite).
  • Up to 492Kbps internet speeds using standard BGAN service plans from Ground Control.
  • Up to 450Kbps unshared CIR 1:1 speeds with BGAN X-Stream service.
  • Simple three-piece design: Mag-Mount Antenna, Controller and IP Handset.
  • Easy to transport. Place system in a medium-sized suitcase for use anywhere.
  • Antenna available in two colors – white or tan.
  • Rackmount version of controller available.
  • Integrated web console for system status, wireless security and other parameters.

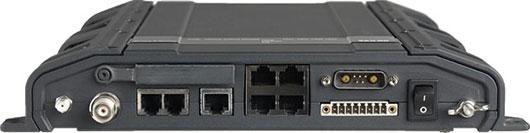

  • There are four RJ-45 Ethernet ports for multiple device connections.
  • All Ethernet ports are POE (Power Over Ethernet) for specialized devices (IP camera).
  • Physical Dimensions (Antenna): (H) 15.2cm / 6.3″ (Ø) 47.7cm / 18.76″ (W) 6kg / 13.2lbs
  • Physical Dimensions (Transceiver): (H) 4.25cm / 1.67″ (W) 23.1cm / 9.72″ (D): 27.3cm / 10.63″(W) 2.5kg / 5.5lbs
  • Satellite Service: Inmarsat BGAN – Provided by Ground Control
  • Voice/Premium Voice : 4 kbps AMBE +2 / 3.1 kHz audio, 64Kbps
  • Standard IP Data: Up to 492 kbps
  • Streaming CIR 1:1: 32, 64, 128 and 256Kbps up to 450Kbps BGAN X-Stream when stationary
  • ISDN: UDI 64Kbps / RDI 56Kbps
  • SMS: 160 Characters
  • LAN Interface: 4 x RJ45 10/100 Mbps ethernet connections
  • Other Interfaces: 1 x RJ45 ISDN, 1 x 5 pin GPIO
  • Power: 10.5-32VDC input 150W max
  • Operating Temperature: -25°C to +55°C / -13°F to +131°F
  • Storage Temperature: -40°C to +85°C / -40°F to +185°F
  • Humidity: 95% non-condensing at +40°C/+104°F
  • Water and Dust Protection: IP56 (Antenna), IP30 (Transceiver)
  • Approvals: CE, GMPCS, FCC, Inmarsat Land Class 10
Plan:
100 MB Prepaid SIM
300 MB Prepaid SIM
1,200 MB Prepaid SIM
3 GB Prepaid SIM
Pricing (USD):
$525.00
$1,467.00
$5,639.00
$13,980.00
Inclusive Data:
100 MB ($5.25 per MB)
300 MB ($4.89 per MB)
1,200 MB (4.70 per MB)
3 GB
Valid For:
90 days
1 year
1 year
1 year
SKU:
BGANBW100QRT
BGANBW300ANN
BGANBW1200ANN
BGANBWHU
  • 13.8″ Inch antenna with built-in magnetic mounts
  • Transceiver with 2 Ethernet Ports and 1 Phone port
  • 2.7 Meter and 8 meter antenna cable
  • IP Handset phone for making and receiving calls
  • 5m (16′) Ethernet cable
  • DC power cable
  • Antenna mounting kit (fixed/rail)
  • Cable support
  • Quickstart guide, users manual, installation manual on flashdrive.

*For full details of our BGAN airtime rates, please visit our BGAN Service Plans page.

Would you like to know more?

If you'd like a quote for the Explorer 727 hardware, and / or BGAN airtime, please call or email us, or complete the form, and we'll be happy to help.

If you're not sure which device / satellite constellation will best meet your needs, get in touch; we have 20 years' experience and we'll provide impartial, expert advice.
