Iridium Edge® 9603 Satellite Modem

$419.00

The Iridium Edge® allows you to send and receive short messages from anywhere on Earth, so long as you have a clear view of the sky. It works far beyond the reach of Wi-Fi and GSM networks.

Maybe you want to transmit weather information from mid-ocean? Or use it to get telemetry back from an oil well? Perhaps you need to communicate in an emergency, when other networks might not be available? Whatever you need it for, we can help.

Combined with our flexible data packages and RockBLOCK IoT platform, you can connect your remote systems seamlessly.

Key Features

  • Plug and play satellite communication

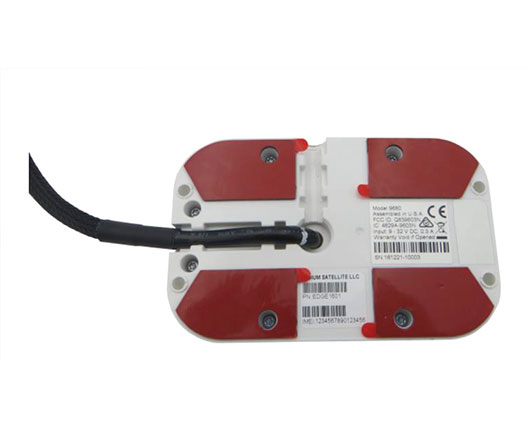

  • Bottom exit or side exit cable

  • Full two-way communication system

  • Satellite add-on for truly global coverage

  • Integrated antenna and power conditioning

  • Robust power supply for industrial IoT

  • Certified in key geographies

  • 180° line of sight for compromised, partially blocked locations

  • Iridium Short Burst Data (SBD) modem for pole to pole coverage

Technical Specification

  • Network Frequency: 1616 – 1626.5 MHz

  • Message Size: 270 bytes (receive), 340 bytes (transmit)

  • SBD Transceiver: Iridium 9602N

  • Antenna: Integrated Iridium certified antenna

  • Dimensions (LxWxH): 130mm x 80mm x 30mm

  • Ingress Protection: IP67

  • Side and bottom cable exits

  • Connector: M12-8 pin male, terminated on 20cm pigtail cable

  • Installation Options: pole, screw, tape

  • Power Supply: (9-32v DC), SAE J1455 load dump protected

  • Maximum Power: 1.6W (peak for short transmit burst)

  • Low Power Modes: < 200uA

  • Reverse polarity protection

  • Operating and Storage Temperature Range: -40C to 85C

  • Vibration: SAE J1455, Section 4.1

  • Interfaces: RS232 AT command interface, on/off control lines

RockBLOCK+ vs. Iridium Edge

Our RockBLOCK+ product is very similar to the Iridium Edge. There are some key differences, though, which may guide your choice, and these are illustrated in the table below.

Both the Iridium Edge and our RockBLOCK+ unit come with access to our ‘Core’ management system, so you can receive data via HTTP POST, easily see message traffic and diagnose issues, and manage your airtime usage quickly and easily online.

RockBLOCK+Iridium Edge
Powered By:3m 9-30v DC input20cm 9-30v DC input
Built-in Antenna:Yes Yes
Transmits Using:IridiumIridium
Weight:300 grams320 grams
Size:4cm high, 13cm diameter (+cable)3cm high, 13cm long, 8cm wide
Waterproofing:IP68 certified (submersible up to 5m indefinitely)IP67 certified (submersible up to 1m for 30 minutes)
Ideal For:External UseExternal Use
Cable Options:Side exit with either tails, DE9 or USB, 3m-15m cableBottom/side exit with M12 8-pin male, 20cm cable
Pricing:from £209.00from £249.00

Running Costs

Line rental is paid in blocks of 1 month, and allows the Iridium Edge to exchange information with the Iridium satellite network. You only pay for months in which you wish to use the Iridium Edge. No annual contract is required. Line rental costs $16 / £12 per month and includes access to The CORE management system for managing your devices.

Credits are used each time you transmit. 1 credit is used per 50 bytes (or part thereof) of message sent or received. 1 credit is also used if you check your mailbox and there are no messages waiting (A mailbox check). Credits do not expire unless you do not use your account at all for 12 months. Credits are shared/pooled between all of the devices on your account

Please note, while our pay-as-you-go tariffs offer great flexibility for development purposes, we know they are not suitable for everyone. If you are planning a large deployment of devices (100+) and are willing to commit to airtime contracts of 12 months or more, please get in touch. We have access to various tariffs which may suit you better.

BundlePer CreditBundle Price
50 Credits£0.14£7
100 Credits£0.13£13
200 Credits£0.11£22
500 Credits£0.10£50
1000 Credits£0.09£90
2000 Credits£0.08£160.00
5000 Credits£0.07£350.00
10,000 Credits£0.06£600.00
20,000 Credits£0.045£900.00
