RockBLOCK Logger | Satellite-Enabled Data Logger

RockBLOCK Logger is a micro datalogger built for remote sensor capture in harsh, off‑grid environments. Housed in a rugged IP68 shell, it offers two dry‑contact digital inputs, one configurable 0–10 V/4–20 mA analog channel, and both BLE‑ and Cloudloop‑based configuration.

It runs directly from 8–32 V DC (solar‑ or battery‑backed) and sips as little as 380 mW at hourly reporting intervals, perfect for long term environmental monitoring where every milliwatt counts.

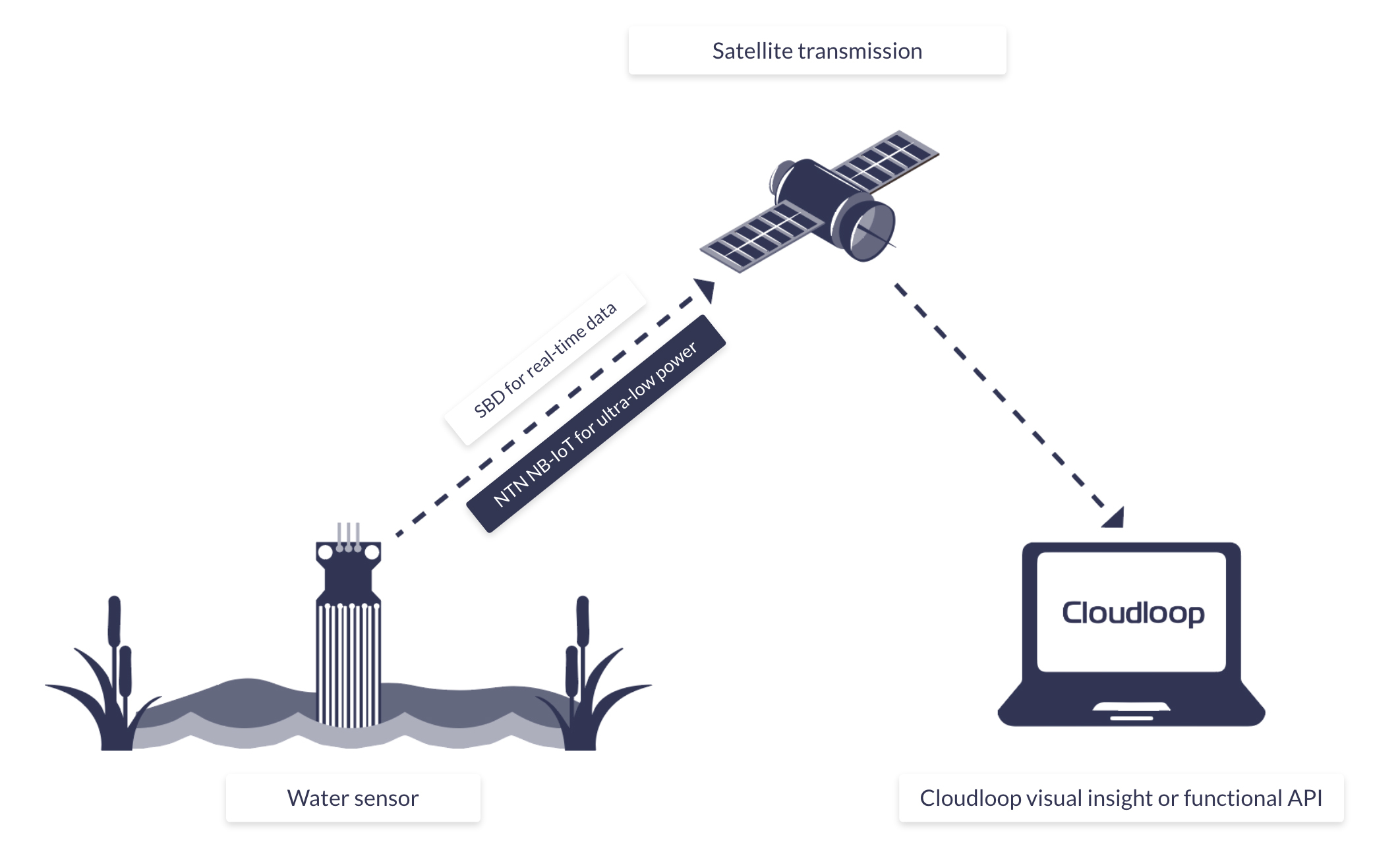

RockBLOCK Logger brings global satellite reach to applications like water level logging, soil moisture sensing, or industrial telemetry – no site visits required and seamless data flow via Ground Control’s Cloudloop platform.

A lightweight alternative to traditional RTUs, RockBLOCK Logger is ideal for remote sites where power, space, and connectivity are at a premium.

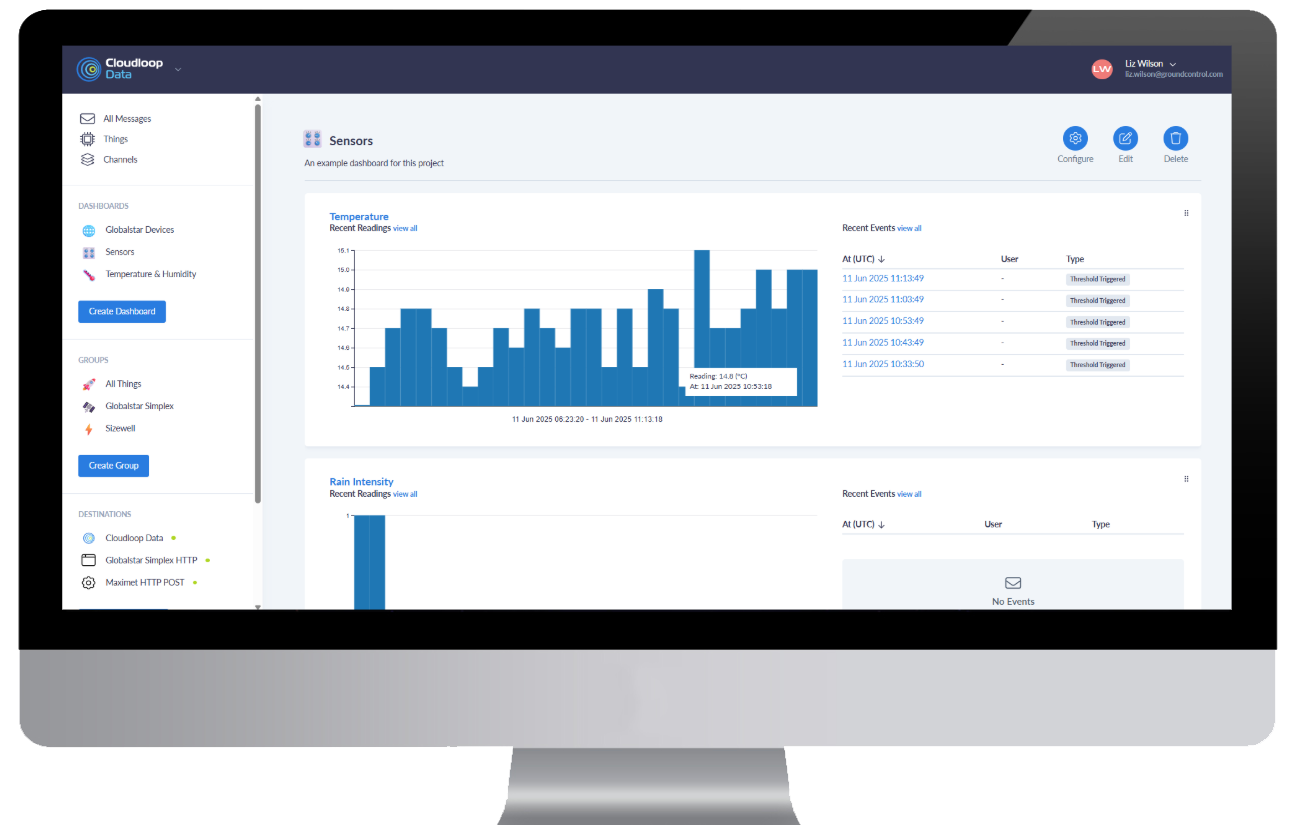

Providing real‑time visibility of existing telemetry readings, Cloudloop Data Insights provides a straightforward means of anomaly detection and continuous monitoring of your sensor data streams. Setting up your threshold alerts means your team can be informed immediately if a sensor reading deviates from expected norms (e.g., temperature spikes, moisture drops, flooding, quality levels).

Capturing, logging and archiving time‑series data from sensors enables users to review historical patterns, perform trend analysis, and identify recurring issues (e.g. seasonal environmental shifts or repeating sensor failures). The platform provides the insight and continued record for legislative and auditing purposes.

Sensor readings from diverse device families are ingested in a consistent format, making it easy to compare and analyze data across different sensor types and locations.

For developers wishing to assimilate the information into their own system, we offer pre-integrated data destinations to ease integration and data analysis.

Key Features

SBD Tech Specification

NTN Tech Specification

COMING SOON

Functions as a micro RTU with digital and analog I/O, remote switching, and satellite/cloud integration
Rugged IP68 enclosure: Dust‑ and waterproof with wide temperature tolerance, built for years of reliable service in harsh, off‑grid sites
Flexible sensor interfaces:
- 2 × dry‑contact digital inputs
- 1 × configurable 0–10 V/4–20 mA analog channel
- 1 x open-drain output (30 V open, 100 mA sink when active)
Ultra‑low power logging: Runs from 8–32 V DC (solar‑ or battery‑backed) and draws as little as 380 mW at hourly reporting intervals when using Iridium SBD
Selectable satellite connectivity. Choose at purchase between:
- Iridium SBD – real‑time, low latency data link – globally available
- NTN NB‑IoT – low power, low cost periodic bulk uploads (coming soon – regional availability)

Cellular failover: If within terrestrial coverage, automatically switch to cellular to save on satellite airtime
On‑device buffering & edge processing: Store and bundle sensor readings locally, transmitting only when values breach your pre‑set thresholds, maximising battery life and airtime efficiency
Seamless Cloudloop integration: secure, over‑the‑air configuration and firmware updates plus end‑to‑end data delivery into Ground Control’s management platform
Bluetooth LE provisioning: Quick on‑site setup and diagnostics via mobile app – no cables or PCs required
Flexible data routing: send data to your servers via webhooks, email or API
Supports remote switching via open drain output, enabling simple control actions such as opening or closing a valve, activating a pump, or triggering an alert beacon

Connectivity Module: Iridium 9603 SBD transceiver
Frequency Band: 1616–1626.5 MHz
Data Link: Short Burst Data (SBD)
Power Input: 8–32 V DC
Power Consumption: ~380 mW @ hourly SBD reports
Sensor Interfaces
- 2 x dry-contact digital inputs
- 1 x 0–10 V / 4–20 mA analog channel
- 1 x open-drain output (30 V open, 100 mA sink when active)
Edge Processing & Buffering: Local storage with configurable threshold-triggered transmissions

Service Availability: Global (needs a clear view of the sky)
Configuration & Provisioning: Bluetooth LE and/or Cloudloop OTA configuration & updates
Enclosure: IP68 polycarbonate with UV-stable seal
Operating Temperature: –40 °C to +85 °C
Dimensions: 120 × 80 × 30 mm
Weight: ~250 g
Antenna: Integrated Iridium patch antenna
Certifications: FCC, CE, IC, Iridium compliance

We are actively testing NTN NB‑IoT: while specs are still evolving, we’re excited by its potential and committed to keeping you informed on its capabilities and trade‑offs.

Connectivity Module: muRata 1SC NB‑IoT modem
Frequency Bands: TBD
Data Link: Narrowband IoT over Non-Terrestrial Network
Power Input: 8–32 V DC
Power Consumption: TBD (expected < SBD version at similar reporting intervals)
Sensor Interfaces:
- 2× dry-contact digital inputs
- 1× 0–10 V / 4–20 mA analogue channel
Edge Processing & Buffering: cloud storage with configurable threshold-triggered transmissions

Service Availability: USA, Canada, Brazil, Australia, New Zealand, Europe (partial)
Configuration & Provisioning: Bluetooth LE and/or Cloudloop OTA configuration & updates
Enclosure: IP68 polycarbonate with UV-stable seal
Operating Temperature: –40 °C to +85 °C
Dimensions: 120 × 80 × 30 mm
Weight: ~250 g
Antenna: Integrated NB‑IoT stub antenna
Certifications: CE, ETSI NB‑IoT, muRata compliance (pending regional approvals)

FAQs About RockBLOCK Logger

Which sensors are compatible with RockBLOCK Logger?

RockBLOCK Logger accepts any industry‑standard 4–20 mA transmitter plus two dry‑contact digital inputs. Popular 4–20 mA sensors include:

Level sensors (e.g. Gems LS‑7, VEGA VEGAPULS series)
Pressure transducers (e.g. Rosemount 3051, WIKA A‑10)
Temperature transmitters (e.g. Endress+Hauser iTEMP TMT82, Omega TXDIN series)
Flow meters with 4–20 mA outputs (e.g. Krohne Optiflux, Proline Promag)
pH/ORP probes paired with 4–20 mA converters (e.g. Consort C532)
Humidity/temperature transmitters (e.g. Vaisala HMP60, Honeywell HIH series)

Plus any other sensor that provides a 4–20 mA loop signal or simple dry‑contact status. Plus, we have extensive experience of integrating industry-specific protocols including MODBUS and DNP3, so please get in touch if you have a specific protocol and want to check compatibility.

I need my sensor data in real-time; what would you recommend?

For real time, low latency reporting, choose the Iridium SBD version of RockBLOCK Logger. SBD delivers true, near‑instant Short Burst Data over the global Iridium constellation, ensuring each measurement is pushed immediately to the cloud – ideal for time‑critical alerts or continuous monitoring. By contrast, the NTN NB‑IoT variant trades immediacy for ultra‑low power, batching data at scheduled intervals. If “always‑on” visibility is your priority, the SBD model is the clear choice.

Which Connectivity Type is Right for You?

We are actively testing NTN NB‑IoT: while specs are still evolving, we’re excited by its potential and committed to keeping you informed on its capabilities and trade‑offs.

	RockBLOCK Logger SBD	RockBLOCK Logger NTN Coming Soon
Connectivity Module	Iridium 9603 SBD transceiver	muRata 1SC NB‑IoT modem
Data Link	Short Burst Data (SBD)	NTN NB-IoT
Min / Max Payload per Message	1 / 340 bytes	50 / 256 bytes
Real-Time Capability	Near-instant, low latency transmission	Scheduled, bulk uploads only
Latency	10 seconds (typical)	Minutes > hours, depending on network
Power Consumption	~ 380 mW @ hourly reports	TBD (expected to be lower than SBD)
Service Availability	Global	USA, Canada, Brazil, Australia, New Zealand, Europe (partial)
