How Does Satellite Internet Work?

Satellite internet is the ability to transmit and receive data from a relatively small satellite dish on Earth and communicate with an orbiting geostationary satellite 22,300 miles above Earth’s equator. The orbiting satellite transmits and receives information to a location on Earth called the network operations center or NOC (pronounced “knock”). The NOC itself is connected to the internet (or private network), so all communication made from a satellite dish to the orbiting satellite will flow through the NOC before it reaches the Internet.

How data moves through a satellite network

Data communication via satellite is not much different than someone using a land-based data provider, at least from the standpoint of the internet user. The key to remember is that once the satellite system is configured by the installer, satellite service acts nearly identically as any other ISP and may be configured as such. The slight difference of satellite service is described here.

What is a Geostationary Satellite?

There is a location in space where you can place a satellite in orbit so that from the ground, the satellite appears stationary. What is happening is that the satellite is actually orbiting the Earth at the same speed the Earth is rotating. The satellite makes a complete orbit around the Earth in 24 hours, or exactly one day. Geostationary satellites are only located at 22,300 miles directly above the Earth’s equator and nowhere else.

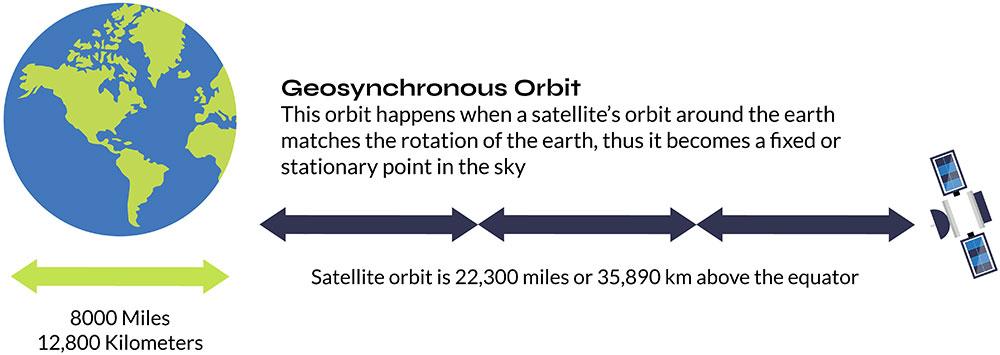

Geosynchronous Orbit Explained

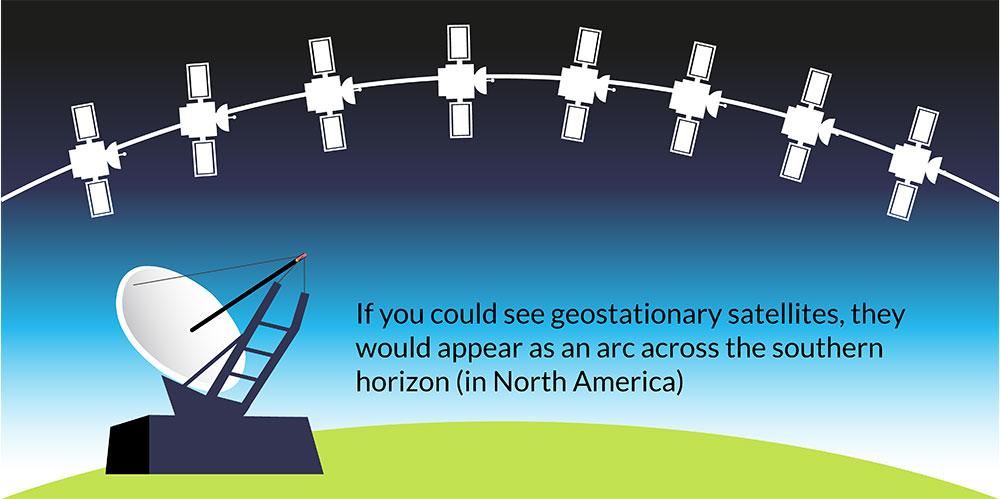

How geostationary satellites would appear

A Satellite’s Longitude

All geostationary satellites have a name like ‘Galaxy 18’ or ‘AMC-4’ and they also have a longitude position. Longitude refers to those imaginary long lines that travel down the Earth for global mapping. There are 360 degrees of longitude readings for Earth. If you know the longitude of a satellite, you knows where the satellite is located in the sky because all geostationary satellites are located above the equator (or zero latitude).

To further confuse things, longitude is divided into two halves: western and eastern hemispheres. All orbital ‘slots’ for satellites would be between 0° to 180° in the eastern hemisphere, and 0° to 180° in the western hemisphere. A satellite orbiting over the Galapagos Islands that services North and South America may have an orbital slot of 101° west longitude. A satellite orbiting over Malaysia that services Asia and Australia may have the orbital slot of 100.5° east longitude.

Satellite longitudes help installers locate where to point a satellite dish. They also help in finding obstacles from an installation location and the satellite.

Satellite Look Angle

Any obstacle (such as a tree or mountain) will interfere with a satellite signal. It is important that there are no obstacles between the installation location of the satellite dish and the orbiting satellite. In the industry, we call this a clear ‘line-of-sight’ to the satellite. Fortunately, finding if there is clear line of sight is is simplified by using a look angle calculator. All that’s needed is a current address (anywhere in the world), and the orbital longitude of the satellite (see description of orbital longitude above).

Plug these two details in, and the calculator will give you a compass heading of the satellite, and the degrees up from the horizon it is located, and a cool overhead picture of the installation location including a line showing the direction of the satellite.

Here is the free look angle calculator from Ground Control.

Satellite Latency

The one (sometimes) noticeable thing that differentiates satellite service from other land-based ISPs is something called ‘latency’, a term commonly used in the satellite world. Latency simply refers to how long it takes a single piece of information to make a round trip back and forth over a satellite connection. Latency is also called ‘ping time’.

Data over satellite travels at the speed of light – 186,000 miles per second. The orbiting satellite is 22,300 miles above earth, and data must travel that distance four times (computer to satellite, satellite to NOC/internet, NOC/internet to satellite, and satellite to computer). The time this takes is called latency, and it’s about half of a second.

This is not a lot of time to you or me, but some applications like VPN and real-time gaming don’t like this time delay. Who wants to pull a virtual trigger and wait half a second for the gun to go off? It’s important to know if satellite latency will affect the way you will use the internet. Ground Control iDirect services have a latency time between 500 to 650 milliseconds, which is only half as much as consumer-grade service providers.

A common misconception is that latency has an effect on transfer rate, or the speed in which you can transfer a file. This is not true. A one megabyte file will transfer just as quickly over a 5 Mbps (megabits per second) satellite connection as it does over a 5 Mbps terrestrial connection. The only difference is that the satellite connection takes a half second to begin the file transfer, which is insignificant.

CIR – Committed Information Rate

CIR is a term often used in the satellite industry. It simply means what the satellite ISP is committed in guaranteeing your lowest speed. Normally CIR is 1:1, which means that you’re not sharing your data channel with any other subscriber, and that max speeds are available 100% of the time. CIR should not be confused with contention ratios.

Contention Ratios

Contention ratios are the number of subscribers that can share your connection at any given point in time. Contention ratios of consumer satellite internet services are up to 400 to 1 (written as 400:1). Ground Control supports premium access and never has a contention ratio above 20 to 1 (or 20:1).

Contention ratios are not CIRs (committed information rates), as speeds are not guaranteed as it’s impossible to know if all other subscribers sharing the channel are not simultaneously downloading a data-intensive video file, which would slow a connection for all users.

Satellite Footprint

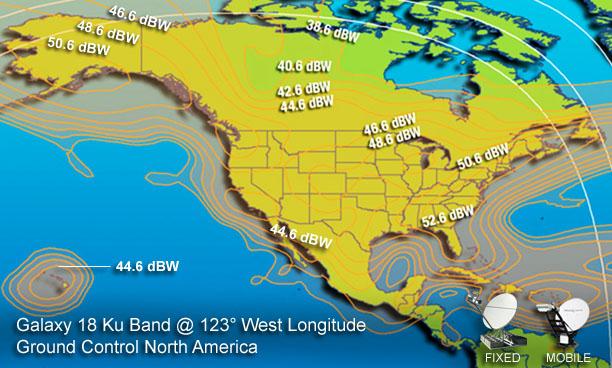

The footprint of a satellite shows the location that a satellite dish may be located to communicate with the satellite. Below is the footprint for Galaxy 18 for North America. Also listed is the satellite longitude of each satellite, which can be used to find the look angle of the satellite for any location on the planet using the satellite look angle calculator.


EIRP – dWB and Dish Size

Effective isotropic radiated power in the above footprint (measured in dBW decibel watts), the numbers on the footprint above represent the signal strength from the satellite onto the Earth. The higher the dBW, the greater the signal strength. If you have a region with a low dBW level, you may have to use a larger satellite dish to receive the signal.

The Radio (Outdoor Equipment – ODU)

The transmitter and LNB receiver

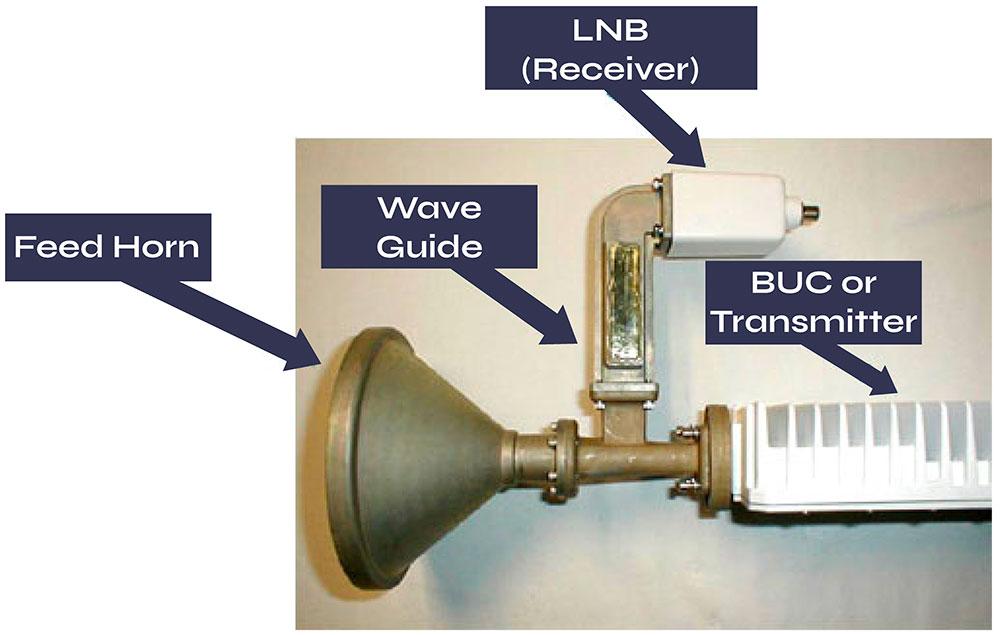

Besides the dish (also called the reflector), what makes up a satellite system is the BUC (pronounced “buck”) which is the transmitter and the LNB receiver. Both require a high performance coax cable connected to the indoor satellite router.

BUCs come in different wattages. The higher the wattage, the greater the satellite system can perform in both speed and in poor environmental conditions. Consumer systems normally use a 1-watt BUC. Ground Control uses a 6-watt BUC with most systems.

The Ku-Band

Satellite communications are radio transmissions in the Ku-band of the electromagnetic spectrum. The Ku-band is the same band that police officers use for their radar detectors. Ku-band satellite dishes transmit between a frequency of 14000 to 14500MHz. They receive a frequency range between 11700 to 12750MHz. Other common satellite bands are L-band (satellite phones and portable terminals), C-band (large satellite dish), and Ka-band (smaller satellite dish).

The Satellite Router or Satellite Gateway

iDirect Side-by-side

Many Ground Control services use iDirect satellite routers. This is the where the coax cables from the satellite dish connect to inside a building, and where a LAN (local area network) can connect to the internet. Note the Ethernet port on the back of the modem.

More information on iDirect services from Ground Control.
