Iridium 9523N
Iridium’s smallest, lightest and most advanced voice and data transceiver module. Enables simplified global voice and data connectivity through the world’s furthest reaching satellite network.
Key Capabilities
Compact OEM satellite connectivity for embedded voice and data applications anywhere on Earth.
Global Iridium voice, Short Burst Data and Push-To-Talk services
Compact 32 g module for space-constrained OEM integration
Direct PCB integration using standardized board connectors
Low voltage operation with separate transmit power input
Supports single- and multi-channel communications designs
Compact Integration for Global Voice and Data

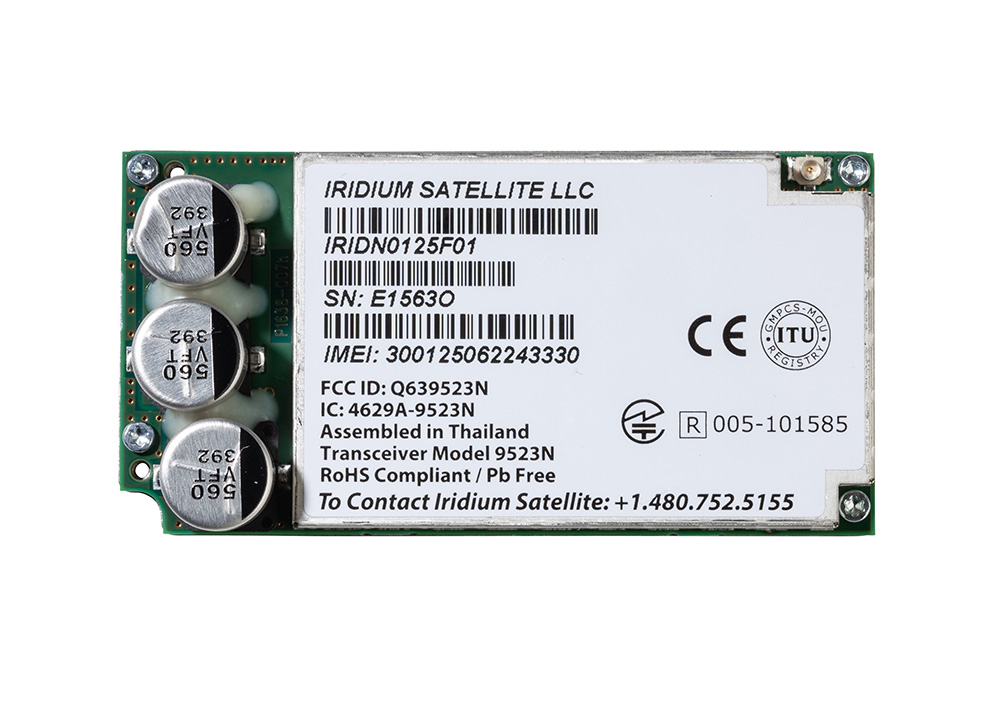

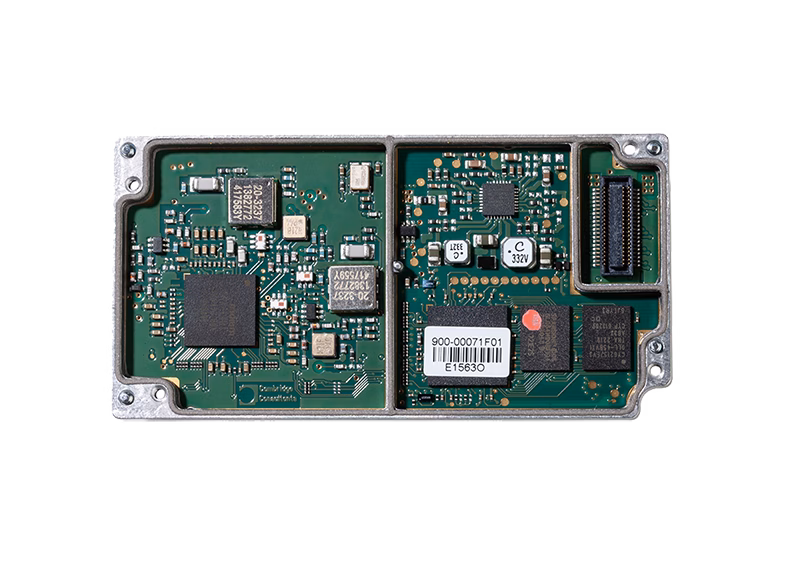

Iridium Core 9523 is designed for OEMs building satellite-connected equipment where space, weight and integration flexibility matter. The compact module mounts directly to the host application board and supports Iridium voice, Short Burst Data, Circuit Switched Data, RUDICS and Push-To-Talk services through a single transceiver.
Its standardized connectors and shared component design help simplify development of single- or multi-channel products for maritime, aviation and land mobile communications, as well as handheld terminals and unattended systems. With pole-to-pole Iridium coverage, the finished product can maintain voice and data communications far beyond terrestrial networks.
Product Specifications
Satellite Services and RF
- Satellite Network
- Iridium Low Earth Orbit satellite network
- Coverage
- Global, including oceans and polar regions, with a clear view of the sky
- Supported Services
- Iridium narrowband voice and data services, including voice calling, Short Burst Data and Push-To-Talk
- Telephony
- Supported
- Location-Based Services
- Supported
- RF Frequency Range
- 1616–1626.5 MHz
- Duplexing Method
- Time Division Duplex
- Multiplexing Method
- TDMA/FDMA
- RF Impedance
- 50 Ω
Electrical Power
- Main Power Input
- 3.2-6 V DC
- Nominal Main Voltage
- 3.7 V DC
- Maximum Main Input Current
- 500 mA
- Standby Current
- 70 mA typical at 3.7 V
- Average Calling Current
- 110 mA typical
- Peak Calling Current
- 300 mA
- VBOOST Nominal Voltage
- 27 V DC
- VBOOST Maximum Recommended Voltage
- 32 V DC
- VBOOST Absolute Maximum Voltage
- 35 V DC
- Minimum VBOOST During Transmit Burst
- 10.5 V DC
- Maximum VBOOST Current
- 1 A
- Typical Calling Power
- 2.3 W
- Maximum Average Calling Power
- 3.1 W
Physical and Environmental
- Dimensions
- 70.44 × 36.04 × 14.6 mm / 2.77 × 1.42 × 0.57 in
- Screen Can Height
- 8.9 mm / 0.35 in
- Weight
- 32 g / 1.13 oz
- Operating Temperature
- -30°C to +70°C / -22°F to +158°F
- Storage Temperature
- -40°C to +85°C / -40°F to +185°F
- Operating Humidity
- Up to 75% relative humidity
- Storage Humidity
- Up to 93% relative humidity
Integration
- Device Type
- OEM satellite voice and data transceiver module
- Integration Method
- Direct PCB integration using standardized connectors
- Product Architecture
- Supports single- and multi-channel communications designs
- Application Types
- Embedded maritime, aviation and land-mobile communications equipment, handheld terminals and unattended systems
- External GNSS
- Location-aware applications require a separate GNSS receiver or positioning source
- Host Features
- Can be incorporated into products that add capabilities such as Wi-Fi, Bluetooth and application processing
Standards and Compliance
- Vibration and Shock Standards
- EN 60068-2-14:2009, IEC 60068-2-64:2008, EN 60068-2-27:2009, SAE J1455 and MIL-STD-810
- Regulatory Certifications
- Anatel, CE, FCC, Industry Canada, ITU and NRRA Korea
- Materials Compliance
- REACH and RoHS
