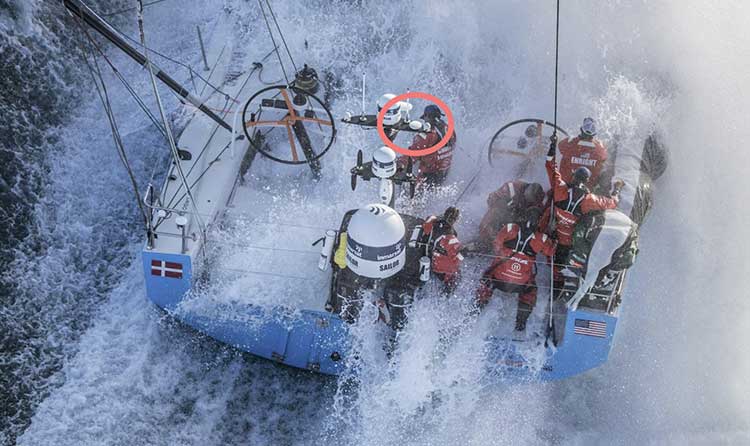

Designed for permanent installation on ships, yachts, vehicles, and other assets
The tracker will wake up on a regular basis, obtain a position using the GPS satellite network, and then transmit that position back to Ground Control HQ using either LTE Narrowband/GPRS or the Iridium satellite network. We visualize the positions on an easy-to-use web-based viewer.
The RockFLEET also allows short messages (like SMS, social media updates, and short emails) to be sent using a paired Bluetooth device, such as a smartphone, and the Messenger app. This allows for full two-way communication wherever you are, even when out of mobile network range.
The combination of LTE Narrowband and Iridium provides a cost-effective and truly global method of tracking and communicating with your assets wherever they are.
- Submersible to 3m for 24 hours
- Proven to operate at -30C and +60C
- Small form factor, with multiple mounting options – can be covertly mounted and positioned
- Will run on 9-30v external power supply back-up internal battery, for up to two weeks’ use
- Truly global operation using the Iridium satellite network
- Least-cost routing option using LTE Narrowband where possible
- Bluetooth LE for advanced messaging (requires Bluetooth LE-compatible phone/tablet)
- Alerts when external power lost, or when route switching
- Dimensions: 120mm diameter x 50mm height | 4.7″ x 1.96″
- Storage Temperature: -40 to 85°C
- Operating Temperature: -30 to 60°C
- Operating Environment: <75% Relative Humidity
- Sealed against dust and water ingression to IP68
- Power Input Voltage: DC (9-30v)
- Power Consumption: 500mA max, plus very low current sleep mode (<30mA)
- Uses the Iridium 9602 Short Burst Transceiver
- Uses the Maxtena 1621 Patch Antenna

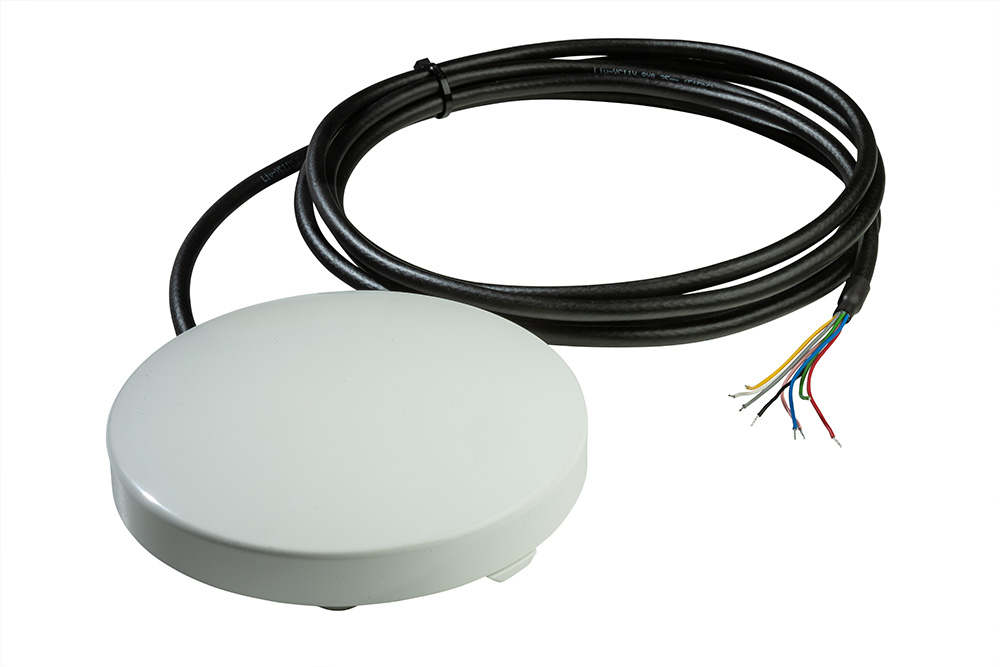

- Available with LTE Narrowband, Serial Communications (RS-232) and Bluetooth LE
- Cable Options: 3m 9-30c (can be varied)
- Switch input/output wires for remote input/alert/control
- Complex geofencing abilities
- Remote configuration of ALL parameters remotely over the air
Ground Control offers Iridium SBD airtime both as a prepaid tariff, and as an annual contract for companies planning a larger deployment of devices. Full pricing plans can be found on our Short Burst Data Pricing page.
If you choose our prepaid, or pay-as-you-go option, line rental is paid in blocks of 1 month, and allows the RockFLEET to exchange information with the Iridium satellite network. You only pay for months in which you wish to use the RockFLEET. No annual contract is required. Line rental costs £18.00 per month and includes access to The CORE management system for managing your devices.
Credits are used each time you transmit. 1 credit is used per 50 bytes (or part thereof) of message sent or received. 1 credit is also used if you check your mailbox and there are no messages waiting (A mailbox check). Credits do not expire, even if you are paying no line rental. Credits are shared/pooled between all of the devices on your account
Please note, while our pay-as-you-go tariffs offer great flexibility for development purposes, we know they are not suitable for everyone. If you are planning a larger deployment of devices and are willing to commit to airtime contracts of 12 months or more, please get in touch; our annual contracts are likely to suit you better.
*For all of our airtime options for the RockFLEET, please visit our Short Burst Data Service Plans page.
Questions about the RockFLEET?
Some ways RockFLEET devices can be used
Effortless cloud-based fleet tracking with v2track
When you combine the tracking and communication capabilities of the RockAIR, RockSTAR and RockFLEET devices with V2Track’s innovative and constantly improved software solution, you have an end-to-end solution for fleet tracking, anywhere in the world.
Vessel Monitoring System Regulations
Vessel monitoring systems (VMS) are used by an increasing number of private and commercial maritime organisations for varying purposes. Systems will have requirements to transmit anything from location information to messaging, catch reporting, and emergency alerts.
