Cobham Explorer 540

Machine-to-Machine BGAN Terminal

The world’s first BGAN M2M terminal designed to operate on both Inmarsat BGAN and cellular 2G/3G/LTE, EXPLORER 540 delivers always available connectivity for critical monitoring and control applications.

BGAN M2M Service

Key Features

  • It is a high-speed, real-time Ethernet port to the Internet for any TCP-IP/Serial M2M, SCADA device.
  • Incredibly rugged with IP66 rating. No enclosure required.
  • Simple to set up by anyone. Versatile power options with PoE (power over Ethernet) port.
  • Uses Inmarsat BGAN M2M or standard BGAN service provided by Ground Control.
  • LTE cellular option – failover to satellite when LTE is not available – least-cost-routing.
  • Global coverage – equipment can be located anywhere.
  • Secure from hackers when powerful firewall rules are in place or using a private network.
  • Remote management of terminal via SMS. Power tools to configure system when not on site.
  • Remote configuration and debugging capable via SMS.
  • Single unit design. Terminal provides Ethernet port (with optional PoE).
  • Mounting bracket included
  • Low power consumption.
  • Low profile – doesn’t attract attention from possible vandalism or theft.
  • Hazardous Area C1D2-Approved.

Tech Specification

  • Dimensions(LxWxD): 202mm x 202mm x 51.8mm (7.8″ x 7.8″ x 1.6″)
  • Weight: 1.6 Kg (3.5 lbs)
  • Satellite Service: Inmarsat BGAN M2M and BGAN – Provided by Ground Control
  • Voice/Premium Voice: 4kbps / 3.1 kHz audo, 64 kbps (Not BGAN M2M)
  • Standard IP Data: Up to 464 kbps (Rx) 448 kbps (Rx). Class-2 BGAN terminal
  • Streaming IP Data: 32, 64, 128 kbps (Not BGAN M2M)
  • Interfaces: 1 x RJ-45 LAN / PoE, 1 x 8 pin terminal block (Ethernet / PoE), 3 x I/O pin, 2 pin ower input
  • Internal Interfaces: One Micro USB for cellular 3G module-modem, SIM card slot
  • Power: PoE via RJ45, 10.5-32 VDC (AC/DC not adapter provided)
  • Operating Temperature: -40°C to +75°C / -40°F to +167°F
  • Storage Temperature: -55°C to +80°C / -67°F to +176°F)
  • Humidity: 95% non-condensing at +40°C/+104°F
  • Robustness: 0.5 m/1.64 ft drop on concrete (operational, 95% survival)
  • Environmental: IP-66-compliant (withstands water jets from any direction)
  • Hazardous: C1-D2 Approved
  • Warranty: 2 year standard warranty. Extended warranties available

Overview

 As the world’s first BGAN M2M terminal designed to operate on both Inmarsat BGAN (Broadband Global Area Network) and cellular 2G/3G/LTE networks, EXPLORER 540 delivers always available connectivity for critical monitoring and control applications.

The BGAN M2M service uses Inmarsat BGAN to provide a reliable, global, two-way IP data service. It is designed to connect monitoring and control applications in remote, unmanned locations, providing visibility and management of those assets. By combining BGAN M2M with cellular connectivity in the same terminal, EXPLORER 540 gives users the opportunity to choose the best carrier for any location.

Industry Uses

  • Utility smart grid – real-time control with about 1200 millisecond latency.
  • Weather, environmental, seismic warning sensors over a global area.
  • Pump/valve monitoring and control – access remote devices, screens, parameters.
  • Asset monitoring – trigger switches, door open, motion detector, alarm send information.
  • Remote video surveillance – 448 Kbps speeds allow for fast refresh-rate of images real-time.
  • Credit card processing – its low power and small profile make it an ideal alternative to satellite dishes.
  • Low- or high-bandwidth SCADA or M2M devices.
  • Any remote device that communicates over a standard TCP-IP internet connection.

Documentation

download.svgExplorer 540 Datasheetdownload.svgExplorer 540 User Manualdownload.svgExplorer 540 Installation Guidedownload.svgExplorer 540 M2M Overview

Useful Links

Explorer 540 BGAN M2M Photos

Explorer_540_BGAN_Back_Side1
Explorer 540 BGAN M2M

Reverse view of the 540

The backside of the Explorer 540 shows the mounting holes and electronics cover of the terminal. The Explorer 540 is rated at IP66 (Powerful water jets from any direction).

Explorer_540_Star_Screw-1
Explorer 540 BGAN M2M

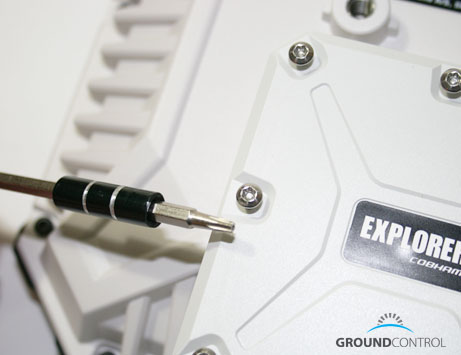

Removing the electronics cover

A Torx #10 bit is used to remove and seal the electronics cover.

Explorer_540_BGAN_Internal_Electronics1
Explorer 540 BGAN M2M

Internal electronics

The internal electronics of the Explorer 540. Note that you may connect via RJ-45, or the individual wires of the Cat5e cable. Also note the SIM card tray and the 12 to 24 volt power connectors with a 3rd ground connection.

Watertight_Connector_540-1
Explorer 540 BGAN M2M

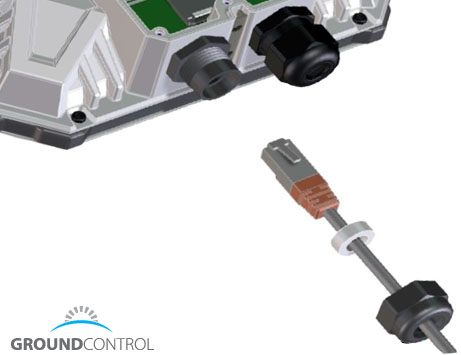

Cable connections

The 540 includes weather-tight cable connections. Very easy to install by anyone and requires no certified installation.

Explorer_540_BGAN_Connection_Ports-1
Explorer 540 BGAN M2M

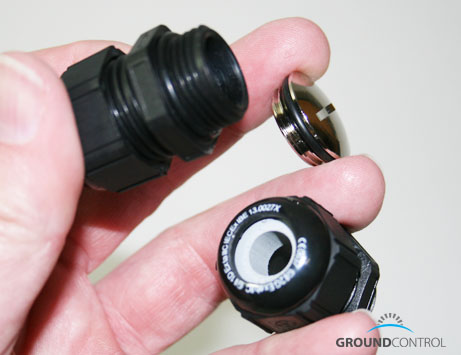

Watertight ports

A close-up of the watertight ports and the sealing cap.

Explorer_540_BGAN_Bottom_View-1
Explorer 540 BGAN M2M

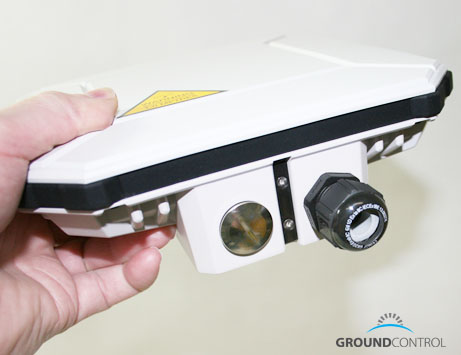

Protection from the elements

The O-rings around the sealing caps and cable connectors keep the terminal protected from severe elements. Operating temperatures are -40°C to +75°C | -40°F to +131°F

Explorer_540_Bracketing_Large-1
Explorer 540 BGAN M2M

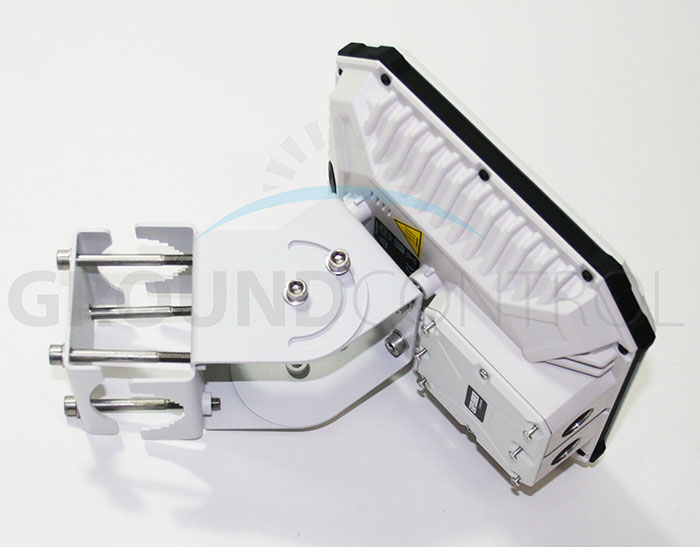

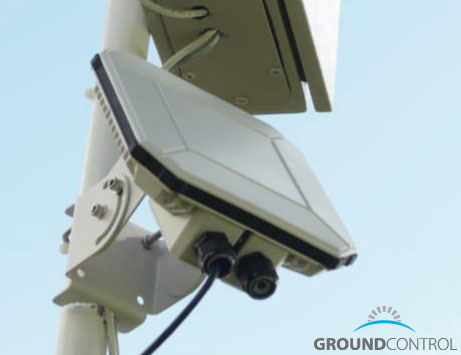

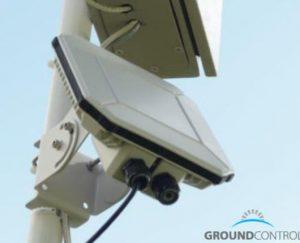

Pole mounting bracket

The pole-mounting bracket comes standard with the Explorer 540 M2M BGAN terminal. The bracket can fit around a pole diameter of 47 millimeters (1.75"). May also use Pipe-Straps for larger pipe installations
