Hughes 9450-C10 Range

$ 9,332.00$ 10,351.00

Clear
SKU: FP-GC-BGANT9450EC10 Category:

In-motion, flexible and fast BGAN Terminal

Designed for Government, first responders, public safety, mobile healthcare, and remote mobile fleet personnel working across a range of industries, the 9450 range paired with the C10 antenna provides high performance on-the-move connectivity in the most demanding environments.

BGAN Service Plans

Key Features

  • Voice and data communications on-the-move
  • Easy to use and operate
  • Simple two-piece design, antenna, and controller / transceiver connected with 8-meter antenna cable
  • Easy to install antenna using bolt mount or optional mag mount
  • Connection via Ethernet or Optional Wi-fi and Phone ports
  • Service using Inmarsat BGAN or BGAN M2M (for low bandwidth applications) provided by Ground Control
  • Up to 492Kbps speeds with C10 Antenna. Class-1 BGAN terminal
  • Onboard router includes port forwarding, MAC filtering, Firewall tasks
  • SMS messaging will work with connected smartphones
  • Remote access of system – capable of tracking and fleet management applications

Tech Specification

  • Capabilities: Internet, email, voice, FTP, FoIP (fax), ISDN, SMS text, video streaming
  • Global Voice: 4Kbps, 3.1K audio via RJ11 phone port (on supported terminal variant)
  • Internet Speeds: 492Kbps (Rx), 492Kbps (Tx) – Class-1 BGAN
  • ISDN: 64Kbps
  • Streaming (CIR 1:1): 32, 64, 128, and 256 Kbps (both directions)
  • SMS: 160 characters
  • Wifi: Optional 802.11 WiFi Hotspot
  • Cable to Controller Length: 8 meters
  • Environmental: IP 56 (antenna)
  • Operating Temperature: -13°F to 131°F (-25°C to 55°C)
  • Storage (survival) Temperature: -40°C to 80°C
  • Humidity: 95% non-condensing at 40°C
  • Ice Buildup: Non-operational at 25mm of ice
  • Power: 12 or 24VDC vehicle power
  • Max Power Consumption: Operating 65 watts (35 watts on idle)
  • Antenna Dimensions: (H) 152mm x (Ø)477mm
  • Weight: 5.5 Kg
  • Controller (Transceiver) Dimensions: 281mm x 232mm x 46mm

Range Overview

The Hughes 9450E-C10 is a highly competitive mobile terminal, ideal for government, first responders, public safety, mobile healthcare, and remote mobile fleet personnel in industries such as utilities, oil and gas, forestry, cable, and telecommunications.

Corporate disaster planners and remote field personnel can collaborate reliably and efficiently with various agencies and headquarters staff using video, voice, and data simultaneously. The Hughes 9450E-C10 terminal is IP-based and offers selectable, dedicated Quality of Service (QoS) levels.

Simple, quick, and flexible options are available for installation on any vehicle. The antenna may be permanently mounted for fleet-style installation or the optional magnetic roof mount can be used for rapid installation and removal.

The Hughes 9450E-C10 terminal also has four (4) Ethernet ports with Power over Ethernet.

Feature 9450L 9450LW 9450TW 9450E
BGAN and BGAN M2M Enabled Y Y Y Y
Wi-Fi Access Point N Y Y N
2 x RJ-11 Phone Ports N N Y Y
4 Port Ethernet Y Y Y Y
4 Port PoE N N Y Y

Hughes 9450 Rental

Rent a Hughes 9450 Auto-Tracking BGAN Terminal with everything needed for $20 a day with free rental days depending on the service plan chosen. Just call or email us and we’ll do the rest.

Rental 9450 system includes: Hughes 9450 domed antenna with mag-mounts, 9450 rransceiver, 10 meter antenna cable, DC vehicle power cable, AD/DC power supply, Ethernet cable, Quickstart guide, USB flash drive for manuals packaged in a hardened Pelican case.

Rent a BGAN Terminal

Documentation

download.svgHughes 9450 Installation Guidedownload.svgHughes 9450 Users' Guidedownload.svgHughes 9450LW C10 Brochuredownload.svgHughes 9450E C10 Brochure

Useful Links

Hughes 9450 Photos

9450_Power_Cord-1
Hughes 9450

Power Generation

The Hughes 9450 transceiver may connect directly any 12 volt power lead in a vehicle. With the purchase of a DC vehicle plug, the terminal may be powered from any vehicle power port.

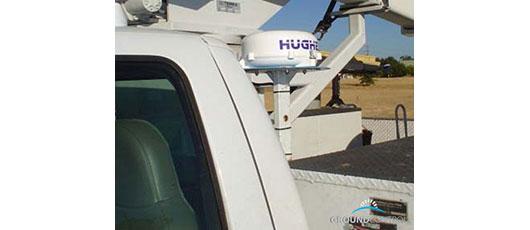

Hughes_9450_Antenna_Bolt-Mount_Truck-1
Hughes 9450

Bolt-Mount Kit

Here the Hughes 9450TW uses the bolt-mount kit mounted to a flat plate mounted on the back of utility truck. The bolt-mount kit is included free with the Mag-Mount option.

Global_Mobile_Office_9450-1
Hughes 9450TW

A Moving Office

The 9450TW will allow any standard analog phone to make or receive calls from anyone. A FAX port allows a compatible group 3 fax machine to plug directly to the 9450TW. Every Hughes 9450TW terminal (or more specifically, the SIM card that is installed in it), is issued a unique phone number that can send and receive phone calls or faxes to any phone on the planet. A truly mobile, traveling office.

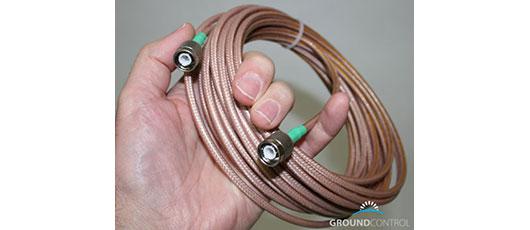

Hughes_9450_Antenna_Cable_1-1
Hughes 9450

Flexible Antenna Cable

The flexible antenna cable is 8 meters long, and thin enough to fit through many car door jambs without being cut. The cable can also be run through a slightly open window.

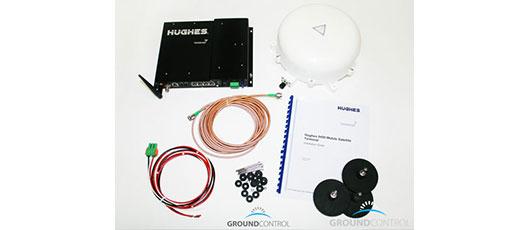

Hughes_9450_Contents_pic22
Hughes 9450TW

What's Included

Above are the contents of the Hughes 9450TW Mag-Mount in-motion satellite terminal. Note shown is the smaller C11 antenna and not the C10 19.5" antenna.

Hughes_9450_Mounting_Solutions-1
Hughes 9450

Bolt Kits and Mag Mounts

The Bolt Kit (left side of picture) comes with locking nuts and rubberized washers. The Mag Mounts (right side) include their own hardware and spacers.

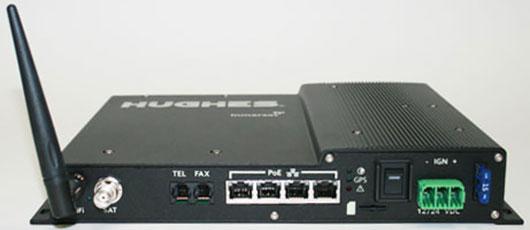

Hughes_9450TW_Tranceiver_Small
Hughes 9450TW

WiFi, Ethernet and Phone / Fax Capabilities with the 9450TW

The Hughes 9450TW is the most flexible and fast option. Offering Internet speeds of up to 492 Kbps via Ethernet or WiFi, the terminal also offers phone/fax service via an RJ11 phone port, and PoE (Power over Ethernet).

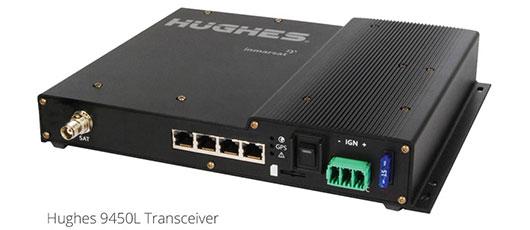

Hughes_9450L_Controller
Hughes 9450L

Ethernet Connection only with the 9450L

The least expensive class is the 9450L model. This is because services such as WiFi, Phone & Fax, and ISDN service have been removed as is shown on the transceiver here.

Hughes_9450LW_Controller-1
Hughes 9450LW

Ethernet + WiFi with the 9450LW

The Hughes 9450LW (Lite+WiFi) removes the phone, fax and ISDN service, but improves the wireless capabilities with 802.11bgn with powerful WPA2 wireless security required by many organizations.

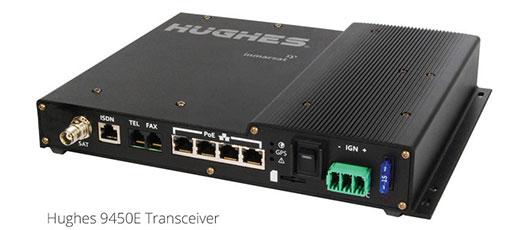

Hughes_9450E_Controller
Hughes 9450E

Ethernet and Phone / Fax Capabilities with the 9450E

Biggest difference of the 9450E is that WiFi has been removed eliminating the possibility of the WiFi being hacked into. Internet connection is by Ethernet only. The 9450E also offers phone and fax service via RJ11 phone ports, 64 Kbps ISDN service, and PoE (Power over Ethernet).
