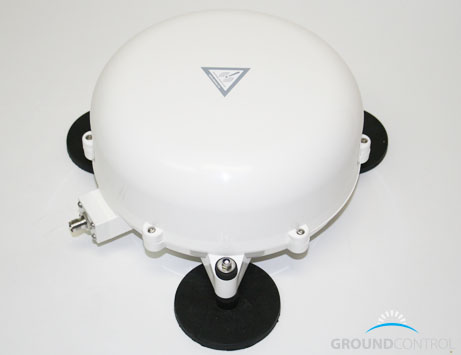

Hughes_9450_C10_10_Inch_Antenna
Hughes_9450E_BGAN_C11
Hughes_9450_Antenna_Bolt-Mount_Truck-2
Hughes_9450_C10_10_Inch_Antenna

Hughes 9450-C11 Range

$ 5,330.00$ 6,530.00

Clear
SKU: FP-GC-BGANT9450EC11 Category:

Budget Friendly, In-Motion BGAN Terminal

Every version of the Hughes 9450 (there are 16 versions, spread across two antenna sizes and different mounting kit options) delivers auto-tracking satellite internet; broadband whether you’re stationary or moving.

The smallest C11 antenna-powered versions are budget friendly and highly competitive mobile terminals, with multiple options to ensure you only purchase the functionality you really need.

BGAN Service Plans

Key Features

  • Voice and data communications on the move
  • Easy to use and operate
  • Simple two-piece design, antenna, and controller / transceiver connected with 8-meter antenna cable
  • Easy to install antenna using bolt mount or optional mag mount
  • Connection via Ethernet or Optional Wi-fi and Phone ports
  • Service using Inmarsat BGAN or BGAN M2M (for low bandwidth applications) provided by Ground Control
  • Up to 464Kbps speeds with C11 Antenna. Class-2 BGAN terminal.
  • SMS messaging will work with connected smartphones
  • Onboard router includes port forwarding, MAC filtering, Firewall tasks
  • Remote access of system – Capable of tracking and fleet management applications

Tech Specification

  • Capabilities: Internet, email, voice, FTP, FoIP (fax), ISDN, SMS text, video streaming
  • Global Voice: 4Kbps, 3.1K audio via RJ11 phone port (on supported terminal variant)
  • Internet Speeds: 464Kbps (Rx), 448Kbps (Tx) – Class-2 BGAN
  • ISDN: 64Kbps
  • Streaming (CIR 1:1): 32, 64, and 128Kbps (both directions)
  • SMS: 160 characters
  • Wifi: Optional 802.11 WiFi Hotspot
  • Cable to Controller Length: 8 meters
  • Environmental: IP 56 (antenna)
  • Operating Temperature: -13°F to 131°F (-25°C to 55°C)
  • Storage (survival) Temperature: -40°C to 80°C
  • Humidity: 95% non-condensing at 40°C
  • Ice Buildup: Non-operational at 25mm of ice
  • Power: 12 or 24VDC vehicle power
  • Max Power Consumption: Operating 65 watts (35 watts on idle)
  • Antenna Dimensions: (H) 119mm x (Ø)252mm
  • Weight: 2Kg
  • Controller (Transceiver) Dimensions: 281mm x 232mm x 46mm

Range Overview

Powered by the smallest C11 antenna, the Hughes 9450 C11 series is a budget-friendly and highly competitive mobile terminal, ideal for government, first responders, public safety, mobile healthcare, and remote mobile fleet personnel in industries such as utilities, oil and gas, forestry, cable, and telecommunications.

Corporate disaster planners and remote field personnel can collaborate reliably and efficiently with various agencies and headquarters staff using video, voice, and data simultaneously.

Feature 9450L 9450LW 9450TW 9450E
BGAN and BGAN M2M Enabled Y Y Y Y
Wi-Fi Access Point N Y Y N
2 x RJ-11 Phone Ports N N Y Y
4 Port Ethernet Y Y Y Y
4 Port PoE N N Y Y

Device Overview

Using the world’s smallest mobile BGAN terminal, customers can connect at IP broadband speeds of up to 464 kbps while on the move.

The Hughes 9450-C11 terminals are IP-based and offer selectable, dedicated Quality of Service (QoS) levels.

Simple, quick, and flexible options are available for installation on any vehicle. The mini-antenna (available on the TW and LW options) may be permanently mounted for fleet-style installation or the optional magnetic roof mount can be used for rapid installation and removal.

Connectivity Options



  • The Hughes 9450L-C11 terminal has four Ethernet ports, which allow the user to connect multiple devices.
  • The Hughes 9450LW-C11 terminal has four Ethernet ports and WiFi capabilities.
  • The Hughes 9450E-C11 terminal has four Ethernet ports, Phone, SMS, Fax and ISDN capabilities.
  • The Hughes 9450TW-C11 terminal has four Ethernet ports, WiFi, Phone, SMS and Fax capabilities.

Hughes 9450 Rental

Rent a Hughes 9450 Auto-Tracking BGAN Terminal with everything needed for $20 a day with free rental days depending on the service plan chosen. Just call or email us and we’ll do the rest.

Rental 9450 system includes: Hughes 9450 domed antenna with mag-mounts, 9450 rransceiver, 10 meter antenna cable, DC vehicle power cable, AD/DC power supply, Ethernet cable, Quickstart guide, USB flash drive for manuals packaged in a hardened Pelican case.

Rent a BGAN Terminal

Documentation

download.svgHughes 9450 User Guidedownload.svgHughes 9450 Installation Guidedownload.svgHughes 9450TW-C11 BGAN Terminal Brochuredownload.svgHughes 9450E-C11 BGAN Terminal Brochuredownload.svgHughes 9450L-C11 BGAN Terminal Brochure

Useful Links

Hughes 9450 C11 Photos

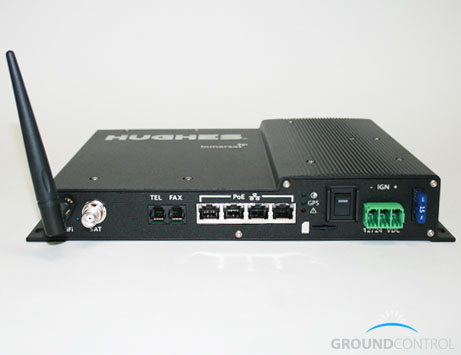

Hughes_9450TW_Tranceiver_Small
Hughes 9450TW

Primary Services of the 9450TW Transceiver

Internet via Ethernet (4 ports with PoE) | Internet via Wireless (802.11b/g/n/g/n WPA2) | Phone service to any standard corded phone | SMS service | FAX service via RJ-11

Hughes_9450E_Controller
Hughes 9450E

Primary Services of the 9450E Transceiver

Internet via Ethernet (4 ports with PoE) | Phone service to any standard corded phone | SMS service | Fax service | ISDN service

Hughes_9450LW_Controller-1
Hughes 9450LW

Primary Services of the 9450LW Transceiver

Internet via Ethernet (4 ports) | Internet via Wireless (802.11bgn WPA2)

Hughes_9450L_Controller
Hughes 9450L

Primary Services of the 9450L Transceiver

Internet via Ethernet (4 ports)

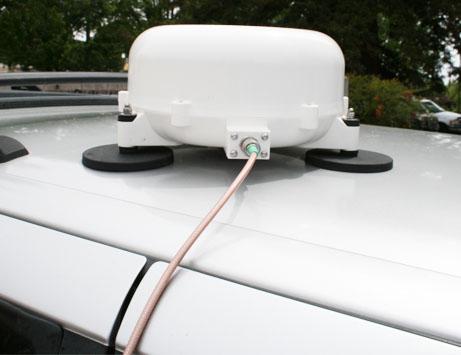

Hughes_9450_Antenna_Truck_Mount-1
Hughes 9450

In-Motion Satellite Internet

The 9450LW and TW wireless capabilities operate while moving or parked from any vehicle.

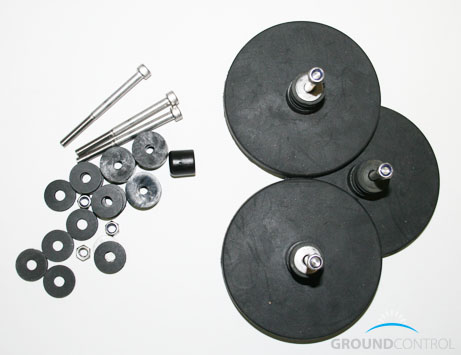

Hughes_9450_Mounting_Solutions-1
Hughes 9450

Bolt Kit or Mag Mounts

The Bolt Kit (left side of picture) comes with locking nuts and rubberized washers. The Mag Mounts (right side) include their own hardware and spacers.

Hughes_9450_Antenna_Cable_1-1
Hughes 9450

Flexible Antenna Cable

The flexible antenna cable is 8 meters long, and thin enough in most cases to avoid being pinched in a door jamb.

Hughes_9450_Contents_pic22
Hughes 9450TW

What's Included in the 9450TW

C11 BGAN class 2 - 10" Inch antenna - All weather design | WiFi Transceiver with 4 Ethernet ports and 2 phone ports | 8 meter antenna cable | Magnetic mounts (with the Mag-Mount selection). | Power cable. | Quickstart, Users Manual, Installation Manual on USB flash drive

9450_Power_Cord-1
Hughes 9450

Power Generation Options

The Hughes 9450 transceiver may connect directly any 12 volt power lead in a vehicle. With the purchase of a DC vehicle plug, the terminal may be powered from any vehicle power port.

Global_Mobile_Office_9450-1
Hughes 9450TW

Connectivity on the Move

The Hughes 9450TW boasts Internet speeds of up to 464 Kbps while on the move or parked. The compact C11 10" diameter antenna may magnetically mount to any roof, and the controller/transceiver router provides 4 Ethernet ports and 802.11b/g/n wireless for any in-range device (up to 100 feet).
