BGAN M2M Terminals

BGAN M2M is a two-way IP data service designed for long term machine-to-machine (M2M) usage.
It's delivered by Inmarsat using the L-band frequency which is unaffected by weather conditions.

L-band is the most popular frequency for IoT applications as it carries limited information in comparison
to Ka-band and Ku-band, but in turn, requires a low power draw, small form factor terminal.

Our Pick of the Best BGAN M2M Terminals

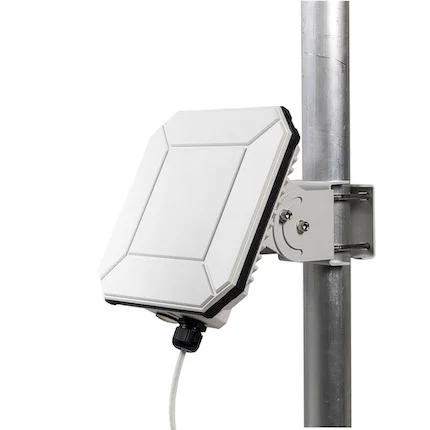

Explorer 540



The world’s first BGAN M2M terminal designed to operate on both Inmarsat BGAN and cellular 2G/3G/LTE, the Explorer 540 delivers always available connectivity for critical monitoring and control applications.

  • Power Consumption (transmit): 19W
  • Weight: 1.6 kg
  • Ingress Rating: IP66

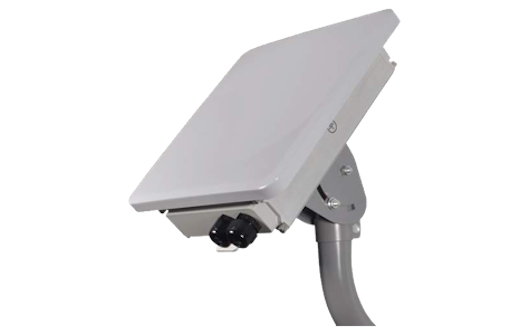

Hughes 9502



Provides reliable connectivity for IP SCADA and machine-to-machine (M2M) applications. The device is offered in one-piece or two-piece form factors as well as a variant compliant for operation in Hazardous environments.

  • Power Consumption (transmit): 3W
  • Weight (one-piece): 3.8 kg
  • Ingress Rating: IP66


Explorer 323



The Explorer 323 mobile satellite terminal provides internet connectivity, voice and email communication with internet speeds of up to 384Kbps to wireless devices including laptops, tablets, smartphones, and low-bandwidth M2M sensors.

  • Power Consumption (transmit): 27W
  • Weight: 3.9 kg
  • Ingress Rating: IP66


Load more
BGAN-M2M-Coverage-Map

BGAN M2M Coverage Map

The Inmarsat I-6 F1 launched on 22nd December 2021, and will be followed by the I-6 F2 in 2023. Both are dual-band satellites and will support both L-Band and Ka-Band frequencies. With the launch, Inmarsat will easily be able to support four times the amount of traffic the network can support today, which means faster speeds and continued reliability of service. The new satellites also deliver greater coverage.

Contact us

    Required Field

    Want to speak to us?

    The quickest way to identify the best solution for your needs is to speak with one of our team of satellite communication experts. We'll be able to quickly narrow down your options and give you objective advice on the best fit.
    GET IN TOUCH

    Contact Us

      Required Field

      BGAN M2M Service Plans and Pricing

      For more information about our BGAN M2M Service Plans, please visit our dedicated BGAN M2M airtime page.

      Plan:
      1 MB
      2 MB
      5 MB
      10 MB
      15 MB
      20 MB
      Price Per Month (GBP):
      £19.60
      £25.70
      £39.10
      £65.20
      £87.00
      £98.00
      Included Data:
      1 MB
      2 MB
      5 MB
      10 MB
      15 MB
      20 MB
      Activation Fee (GBP):
      £26.00
      £26.00
      £26.00
      £26.00
      £26.00
      £26.00
      Overage Fee Per MB:
      £19.60
      £13.00
      £12.20
      £10.40
      £9.60
      £8.70
      Minimum Contract Term:
      1 Month
      1 Month
      1 Month
      1 Month
      1 Month
      1 Month

      Benefits of BGAN M2M Service

      Is BGAN M2M the right choice for your IoT connectivity challenge? Here are some of the key benefits of the service; speak to us if you'd like advice on your application.

      IP-Based for Easy Integration

      Data speeds are 448kbps (send) / 464kbps (receive) which is more than enough for most IoT applications. Because it's IP-based, it's easy to integrate with your existing infrastructure.

      Unrivalled Reliability

      Inmarsat delivers 99.9% network availability, which is as good as it gets. As BGAN M2M uses the L-band frequency, your devices will remain connected wherever they are, and whatever the weather.

      Cost-Effective and Flexible

      Ground Control was Inmarsat's first ELEVATE partner which means we have access to great airtime rates for BGAN M2M service. It's ideal for IP SCADA and remote fixed asset monitoring.

      Product Testing and Installation

      We test every third party device we send out to make sure it's working, and it has the latest firmware installed. We can also help you in-person or remotely with site selection and installation.

      Cloudloop Platform and Applications

      Cloudloop puts you in control of your devices and data. Developer-friendly APIs and a intuitive online platform simplifies your data, device and subscription management.

      Expertise and Support

      In our 2022 customer survey, 66% of our customers rated our customer support as above or well above average, and we're trusted to help solve challenging IoT problems in the most cost-efficient way.

      Comparing Satellite IoT Connectivity

      It’s tricky to compare airtime services because so much depends on how much data you need to send, but as a rough guide, we’ve put together the following comparison points. Get in touch if you’d like any help deciding what will work best for you.

      Service:
      Iridium SBD
      Iridium Certus 100
      Inmarsat BGAN M2M
      Connection Type:
      Message-Based
      IP-Based
      IP-Based
      Typical Connection Speed:
      270 / 320B per Message
      22 / 88 Kbps
      448 / 464 Kbps
      Satellite Orbit:
      Low Earth Orbit (LEO)
      Low Earth Orbit (LEO)
      Geo-stationary
      Latency:
      Very Low
      Very Low
      Low
      Total Cost of Ownership:
      Very Low
      Medium
      Low
      Power Usage:
      Very Low
      Medium
      Low
      Connection Frequency:
      On Demand
      Frequently Connected
      Frequently Connected
      Great For:
      Very small amounts of data from individual sensors
      Fixed or mobile IoT applications which require IP connection
      Fixed IoT applications with larger amounts of data to transfer via an IP connection

      What's Next?

      If you've decided on the hardware you need, and just want a quote and lead time, please call or email us, or complete the form, and we'll be happy to help.

      If you'd like some impartial advice on the best device and airtime for your IoT connectivity requirements, get in touch; with 20 years' experience there isn't much we don't know about satellite IoT connectivity and devices!
